WHC Bluetooth

Overview

In this solution, Ameba soc functions as the Bluetooth controller connected to the customer’s Bluetooth Host via low level interface. This solution has the following advantages:

Rich interface options: Establishes transmission channels between Host and Device via UART/SPI/SDIO/USB

Cross-platform compatibility: Supports FreeRTOS and Zephyr as Host development environments

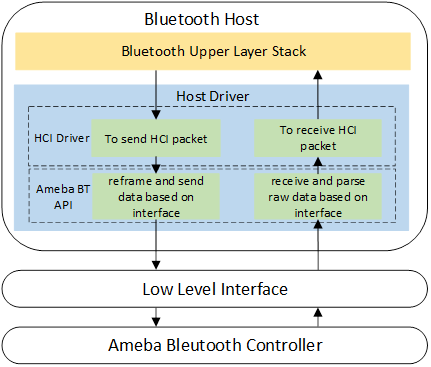

The architecture diagram of the solution is as follows:

Host driver connects Bluetooth Upper layer stack and low level interface.

Bluetooth Upper layer stack calls transmit API in Host driver when there are HCI packets need to be sent to Bluetooth controller. Then Host driver calls function of low level interface to send out data.

Low level interface calls Host driver’s receive API when data is received from controller. Then Host driver will pass the data received to Bluetooth Upper layer stack.

Host driver will reframe HCI packet when transmitting and parse data when receiving according to different Low level interface requirement connected to Host driver. Low level interface only needs to cover basic data transaction.

WHC Bluetooth File Tree

├─ bluetooth
│  ├─ driver
│  │  ├─ bt_inic
│  │  │  ├─ bt_inic_defs.h
│  │  │  ├─ bt_inic_h4.c
│  │  │  ├─ bt_inic_h5.c
│  │  |  ├─ bt_inic_sdio_dplus.c
│  │  │  ├─ bt_inic_sdio.c
│  │  │  ├─ bt_inic_spi_dev.c
│  │  │  ├─ bt_inic_usb.c
│  │  │  ├─ bt_inic_usbd.c
│  │  │  └─ bt_inic.h

├─ bluetooth
│  ├─ example
│  │  ├─ bt_host
|  │  │  ├─ rtos_driver
|  |  |  │  ├─ host_api
|  |  |  |  │  ├─ sdio
|  |  |  |  │  │  ├─ sdio_if.c
|  |  |  |  │  │  └─ sdio_protocol.c
|  |  |  │  │  ├─ spi
|  |  |  |  │  │  ├─ spi_if.c
|  |  |  |  │  │  └─ spi_protocol.c
|  |  |  |  │  ├─ uart
|  |  |  │  │  │  ├─ h4.c
|  |  |  │  │  │  └─ uart_if.c
|  |  |  │  │  ├─ usb
|  |  |  │  │  │  ├─ usb_if.c
|  |  |  │  │  │  └─ usb_protocol.c
|  │  │  │  |  ├─ bt_inic_defs.h
|  │  │  │  |  ├─ rtk_stack_example.c
|  │  │  │  |  └─ zephyr_stack_example.c

├─ bluetooth
│  ├─ example
│  │  ├─ bt_host
|  │  │  ├─ linux_driver
|  |  |  │  ├─ sdio_dplus
|  |  |  │  │  ├─ rtb_sdio_probe.c
|  |  |  │  │  ├─ rtb_sdio.c
|  |  |  │  │  └─ rtb_sdio.h
|  |  │  │  ├─ sdio_green2
|  |  |  │  │  ├─ btrtk_sdio.c
|  |  |  │  │  └─ btrtk_sdio.h
|  |  |  │  ├─ spi
|  |  │  │  │  ├─ rtb_spi_config.h
|  |  │  │  │  ├─ rtb_spi_probe.c
|  |  │  │  │  ├─ rtb_spi.c
|  |  │  │  │  └─ rtb_spi.h
|  |  │  │  ├─ usb_green2
|  |  │  │  │  ├─ rtk_bt.c
|  |  │  │  │  └─ rtk_bt.h
│  │  │  |  ├─ rtk_coex.c
│  │  │  |  ├─ rtk_coex.h
│  │  │  |  └─ rtk_coex_host_api.h

WHC Bluetooth Porting Guide

Device-Side Driver Porting

TODO

RTOS Driver Porting

Host Driver

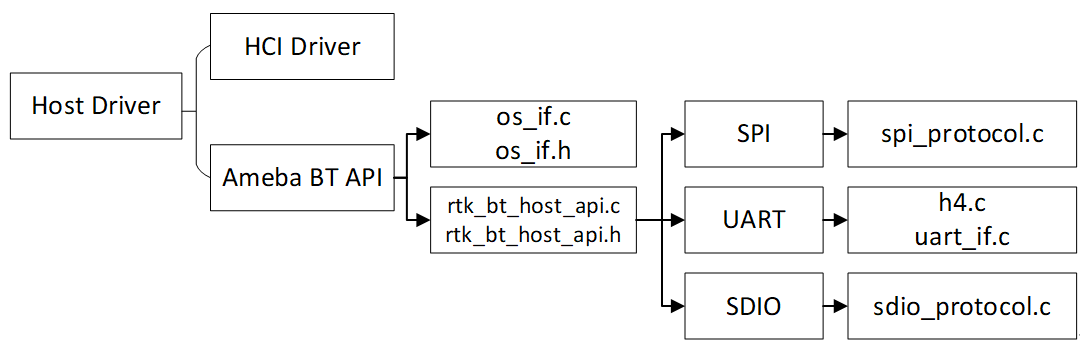

The Host driver consists of two parts: the HCI driver and the Ameba BT API. The HCI driver needs to be implemented by the customer, while the Ameba BT API is provided by us. Bluetooth Host communicates with the Controller by calling Ameba BT API through HCI driver. The code structure of the Host driver is shown as follows:

HCI Driver

Bluetooth upper layer stack transceives data through HCI driver, customer needs to implement this part in their own Host development environment. For FreeRTOS, Customers may place the HCI driver in any directory they prefer, according to their project layout, and modify CMakelist and Config to compile it. Details of the HCI driver are introduced in following steps:

HCI function

Description

HCI open

Bluetooth upper layer stack enables Bluetooth controller through HCI open function, Ameba BT enable API should be called by HCI open function according to the transport protocol to enable Ameba Bluetooth controller.

HCI close

Bluetooth upper layer stack disables Bluetooth controller through HCI close function, Ameba BT disable API should be called by HCI close function to disable Ameba Bluetooth controller.

HCI send

Bluetooth upper layer stack sends HCI packet through HCI send function, Ameba BT send API should be called by HCI send function to send packet to device.

HCI receive

Bluetooth upper layer stack receives HCI packets through HCI receive function, this function will be called by Ameba BT receive API when receiving data from low level interface.

Ameba BT API

The Ameba BT API consists of rtk_bt_host_api.c, rtk_bt_host_api.h, os_if.c, os_if.h, and the various interface-protocol modules. For FreeRTOS, we will provide all the files. Customers may place the Ameba BT API in any directory they prefer, according to their project layout, and modify CMakelist and Config to compile it. The Ameba BT API functions as the bridge between the HCI driver and the low-level interface. The main functions of the Ameba BT API are as follows

Reframe & Transmit

Accept the HCI packets from the Bluetooth upper layer stack

Encapsulate HCI packets according to the low level interface protocol (H4/H5/SDIO/SPI/USB, etc.)

Pass the encapsulated frames to the low-level interface driver

Receive & Parse

Receive the raw data coming from the low-level interface

Parse HCI packet from raw data

Forward HCI packet to the upper layer stack receive callback

Details of the Ameba BT API are introduced in following steps:

BT API

Description

BT enable

The Ameba BT enable API will register HCI receive callback and interface operations, and send vendor command to enable Ameba Bluetooth controller. Please select the appropriate Ameba BT API based on the interface protocol.

If UART H4 is used, call bool rtk_bt_host_enable_with_h4(struct hci_low_level_opts *opts, APP_RECV recv), which is described in section 4.1. UART interface is controlled Bluetooth only, so you need to implement low level operations.

If SDIO is used, call bool rtk_bt_host_enable_with_sdio(APP_RECV recv), which is described in section 4.2. SDIO interface is controlled by WiFi instead of Bluetooth, so you need to ensure SDIO interface is enabled when calling this API.

If SPI is used, call bool rtk_bt_host_enable_with_spi(APP_RECV recv), which is described in section 4.3. SPI interface is controlled by WiFi instead of Bluetooth, so you need to ensure SPI interface is enabled when calling this API.

BT disable

The Ameba BT disable API void rtk_bt_host_disable(void) will send vendor command to disable Ameba Bluetooth controller. If low level interface is controlled by WiFi, make sure interface is enabled when calling this API.

BT send

The Ameba BT send API uint16_t rtk_bt_host_send(uint8_t type, uint8_t *buf, uint16_t len) will send HCI packet to device through low level interface according to transport protocol.

BT receive

The Ameba BT receive API void rtk_bt_host_recv_raw(uint8_t *buf, uint16_t len) will receive raw data from low level interface and parse raw data to HCI packet according to protocol used (e.g. H4, H5, SDIO, SPI).

This API void rtk_bt_host_recv(uint8_t type, uint8_t *buf, uint16_t len) will pass the parsed HCI packets to upper layer stack through HCI receive callback.

Low Level Interface

Note

Only FreeRTOS UART H4 interface driver is ready now !

UART interface is controlled by Bluetooth, please refer to uart_if.c for UART interface configuration.

APIs

bool rtk_bt_host_enable_with_h4(struct hci_low_level_opts *opts, APP_RECV recv);
Item

Description

Function

This function is used to register UART interface operations and Upper stack receive callback, and enable H4 protocol.

Parameters

opts: Low level interface operations

recv: HCI packets received callback of Bluetooth Upperstack

Return

True on success or false on failure
bool rtk_bt_host_enable_with_sdio(APP_RECV recv);
Item

Description

Function

This function is used to register SDIO interface operations and Upper layer stack receive callback.

Parameters

recv: HCI packets received callback of Bluetooth Upperstack

Return

True on success or false on failure
bool rtk_bt_host_enable_with_spi(struct hci_spi _opts *opts, APP_RECV recv);
Item

Description

Function

This function is used to register SPI interface operations and Upper layer stack receive callback.

Parameters

recv: HCI packets received callback of Bluetooth Upperstack

Return

True on success or false on failure
void rtk_bt_host_disable(void);
Item

Description

Function

This function is used to disable bluetooth device.
uint16_t rtk_bt_host_send(uint8_t type, uint8_t *buf, uint16_t len);
Item

Description

Function

This function is used to send HCI packet to device.

Parameters

type: HCI packet type

buf: HCI packet buffer

len: HCI packet buffer length

Return

Actual data length sent to device
void rtk_bt_host_recv(uint8_t *buf, uint16_t len);
Item

Description

Function

This function is used to send the parsed packet from Host driver to Upper layer stack.

Parameters

buf: Data received from Host driver

len: Length of data received
void rtk_bt_host_recv_raw(uint8_t *buf, uint16_t len);
Item

Description

Function

This function is used to send raw data received from Low level interface to Host driver.

Parameters

buf: Data received from Low level interface

len: Length of data received

Linux Driver Porting

TODO
