AMB82-mini Arduino

AMB82-mini EVB

AMB82-mini (Ameba RTL8735B)

MCU Part Number: RTL8735B 32-bit Arm v8M, up to 500MHz Memory 768KB ROM 512KB RAM 16MB Flash Supports MCM embedded DDR2/DDR3L memory up to 128MB Key Features Integrated 802.11 a/b/g/n Wi-Fi, 2.4GHz/5GHz Bluetooth Low Energy (BLE) 5.1 Integrated Intelligent Engine @ 0.4 TOPS USB Host/Device SD Host ISP Audio Codec H.264/H.265 encoder up to 5MP or 1080p @45fps Secure Boot Crypto Engine Other Features 2 SPI interfaces 1 I2C interface 8 PWM interfaces 3 UART interfaces 3 ADC interfaces 2 GDMA interfaces Max 23 GPIO

Worldwide Seeed Studio Amazon ICShop ICShop (Module only) Regional Taiwan ICShop Taiwan ICShop (Module only)

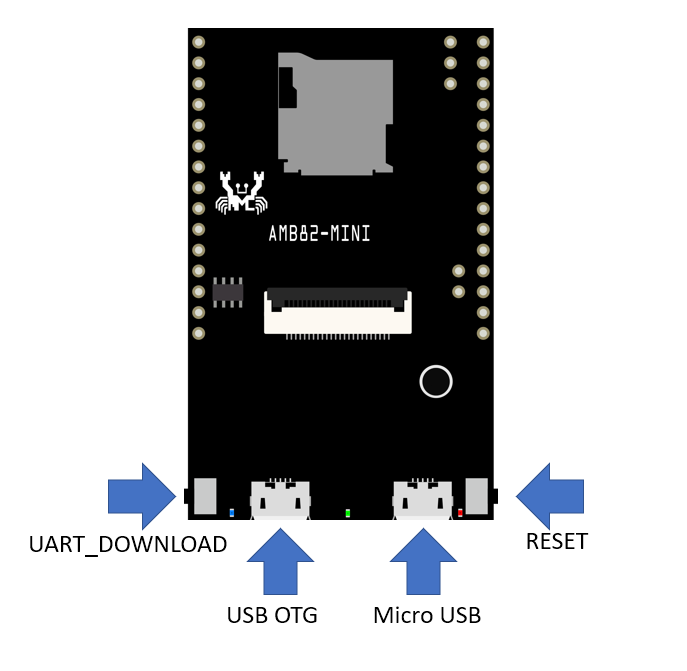

Pinmap / Layout

Please refer to the following figure and table for the pinmap/layout diagram and functions.

	GPIO pin	GPIO INT	ADC	PWM	UART	SPI	I2C	SWD	LED
0	PF5	✓				SPI1_MISO
1	PF6	✓		✓		SPI1_SCLK
2	PF7	✓		✓		SPI1_MOSI
3	PF8	✓		✓		SPI1_SS
4	PF11	✓		✓
5	PF12	✓		✓
6	PF13	✓		✓
7	PF14	✓		✓
8	PF15	✓		✓
9	PF2	✓	A2				I2C1_SDA (master only)
10	PF1	✓	A1				I2C1_SCL (master only)
11	PF0	✓	A0
12	PE4	✓				SPI_SS	I2C_SDA (master only)
13	PE3	✓				SPI_MOSI	I2C_SCL (master only)
14	PE2	✓			SERIAL3_RX	SPI_MISO
15	PE1	✓			SERIAL3_TX	SPI_SCLK
16	PD18	✓
17	PD17	✓
18	PD16	✓			SERIAL2_RX
19	PD15	✓			SERIAL2_TX
20	PD14	✓
21	PA2	✓	A6		SERIAL1_TX
22	PA3	✓	A7		SERIAL1_RX
23	PF9	✓		✓					LED_BUILTIN / LEB_B (blue)
24	PE6	✓							LED_G (green)
25	PF4	✓			LOG_TX
26	PF3	✓	*A3		LOG_RX
27	PA1	✓	A5				I2C2_SDA (master only)	SWD_CLK
28	PA0	✓	A4				I2C2_SCL (master only)	SWD_DATA
29	PF10	✓
