VL53L5CX Distance Array

Materials

• AMB82-mini x 1

• SparkFun Qwiic ToF Imager - VL53L5CX x 1

Example

Introduction

This example shows how to use the SparkFun VL53L5CX Time-of-Flight sensor in 8x8 mode to get distance array.

Procedure

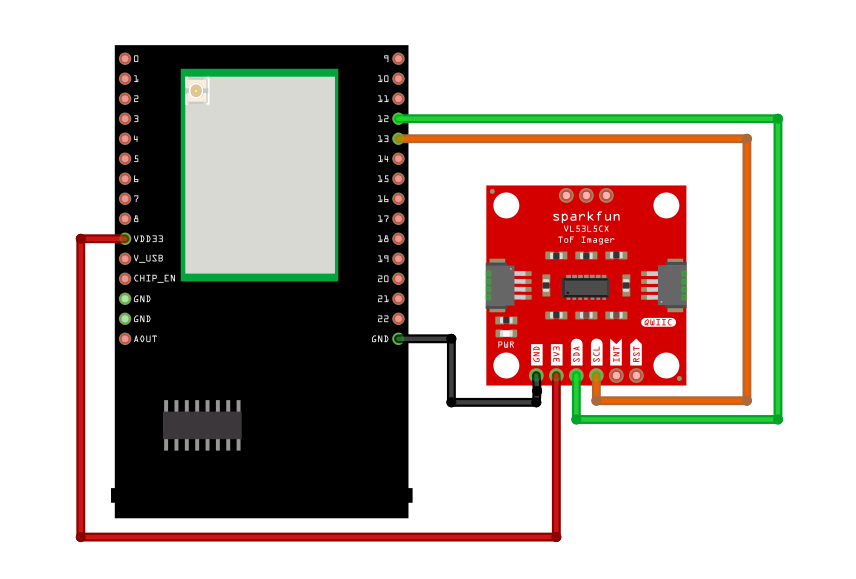

Connect the VL53L5CX to I2C_SDA and I2C_SCL of the board as shown in the diagram below.

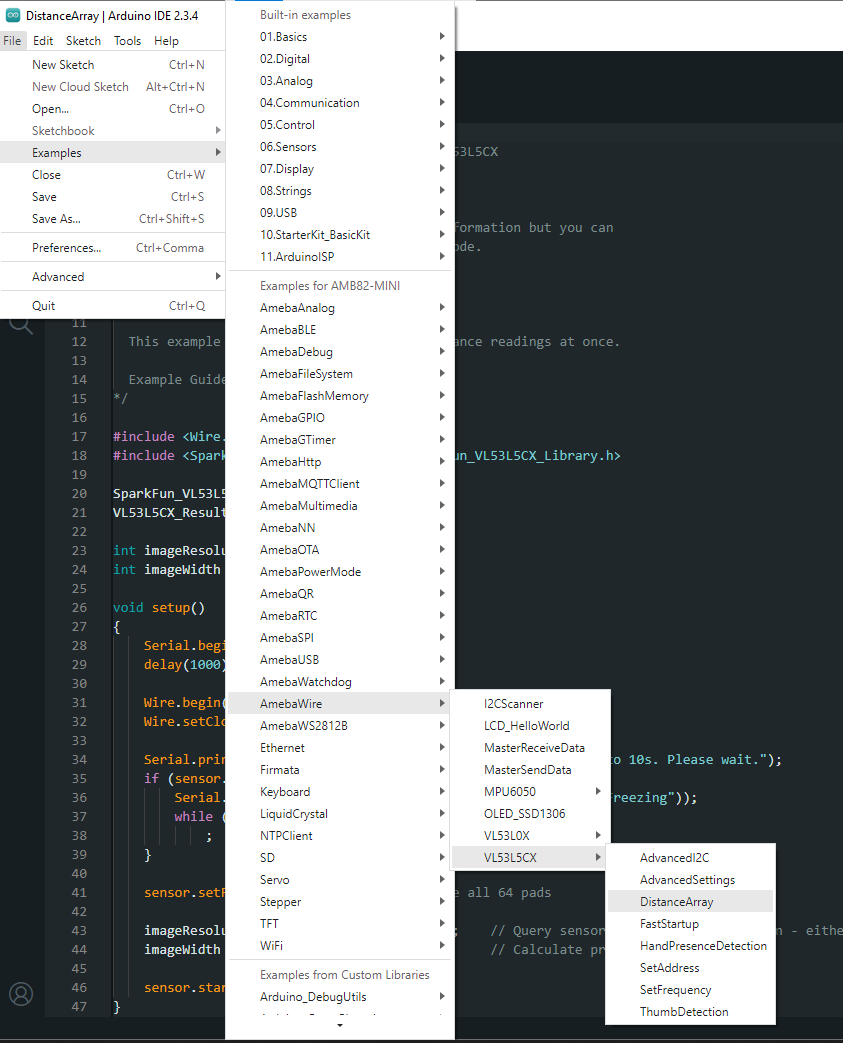

Open the example in “File” -> “Examples” -> “AmebaWire” -> “VL53L5CX” -> “DistanceArray”.

Compile and run the example.

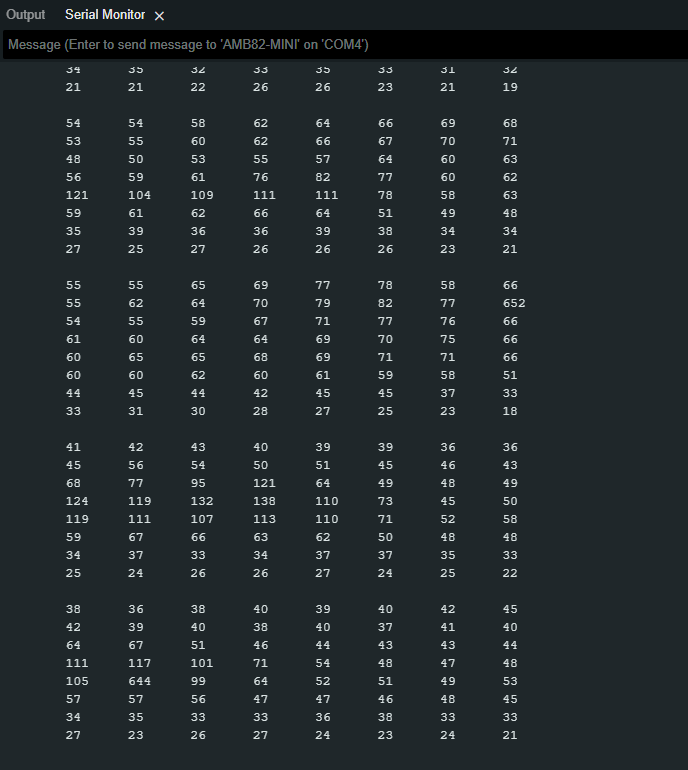

You should be able to see the 8x8 distance array printed in the Serial Monitor.
