BMI270 Calibration NVM

Materials

Example

Introduction

This example does some basic calibration of the BMI270 and then allows you to write those calibrations to non volatile memory.

Procedure

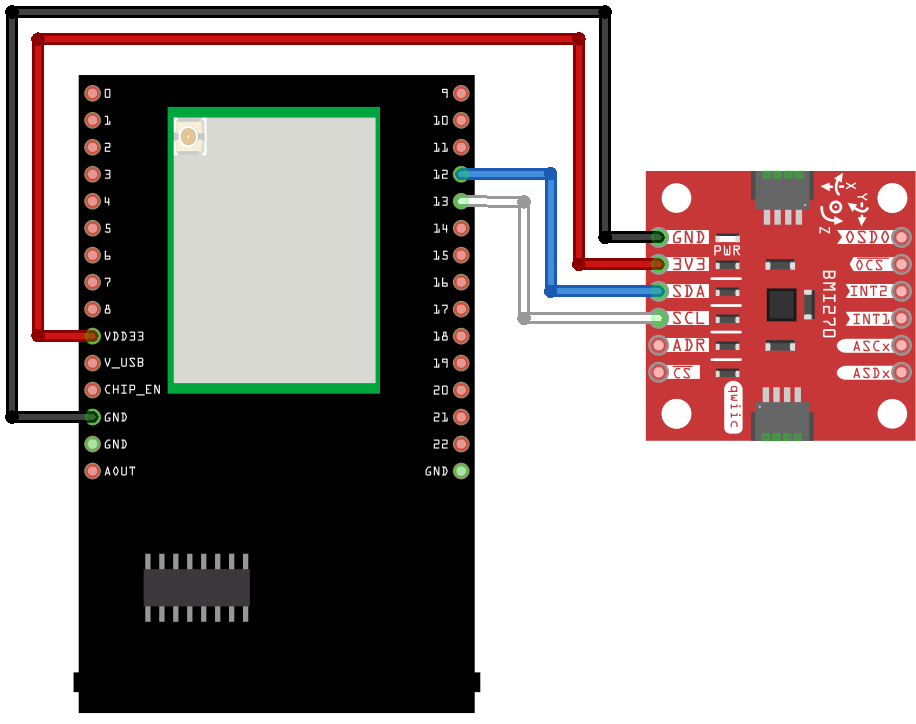

Connect the AMB82-mini to I2C_SDA and I2C_SCL of the sensor as shown in the diagram below.

../../../_images/image016.png

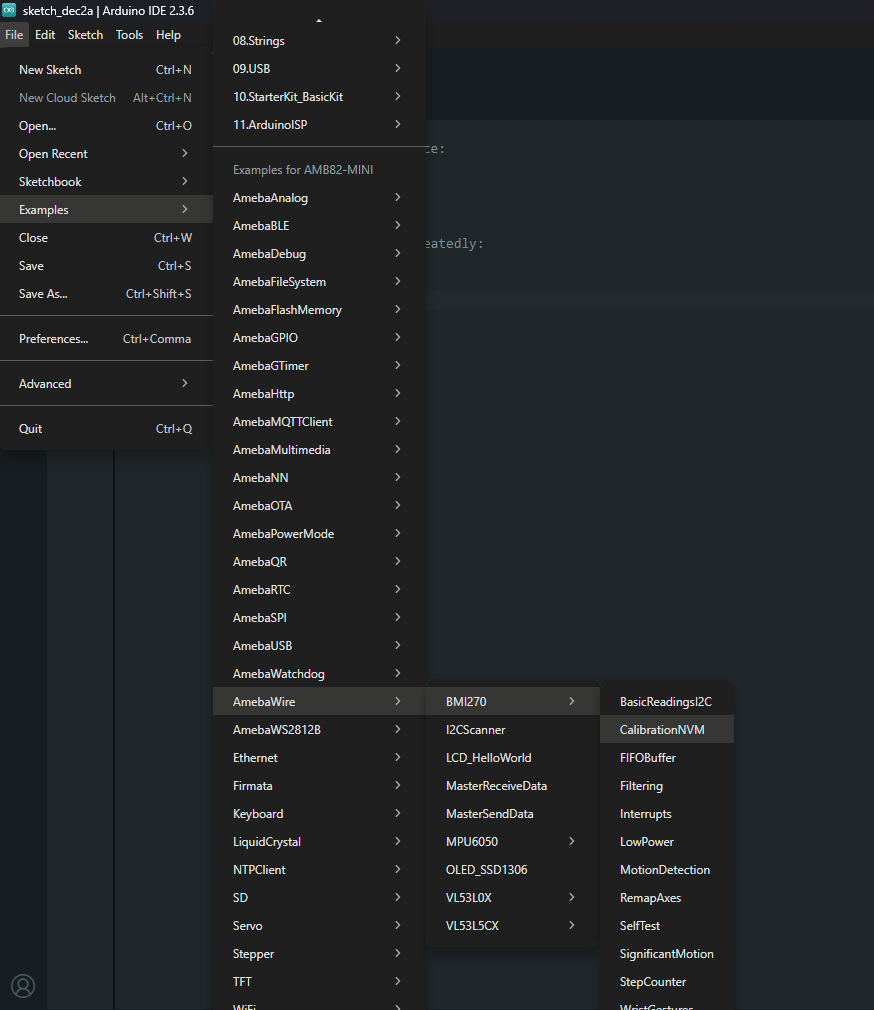

Open the example in “File” -> “Examples” -> “AmebaWire” -> “BMI270” -> “CalibrationNVM”.

../../../_images/image026.png

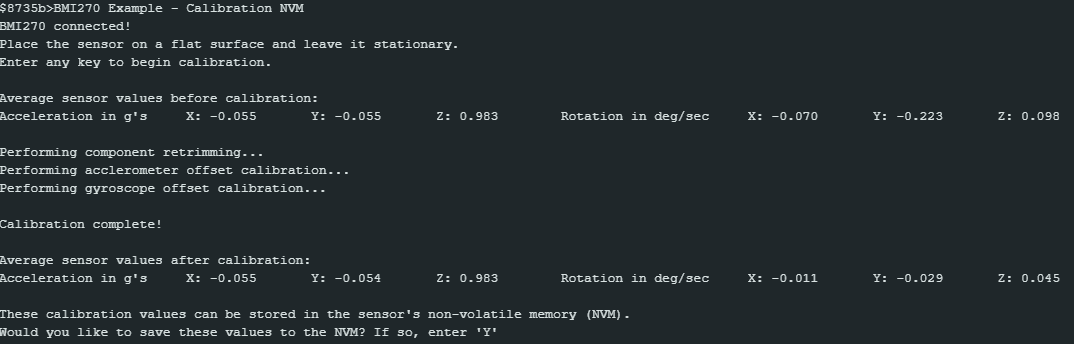

Compile and run the example.

../../../_images/image035.png

Warning

This chip only allows a total of 14 writes. Be mindful of this limit when recalibrating.
