RTL8730E Modules and EVBs

Modules and Evaluation Boards

Integrates Realtek's Ameba wireless SoC, featuring powerful Wi-Fi and Bluetooth capabilities, as well as excellent RF performance

Arm®/RISC-V MCU | Wi-Fi | Bluetooth | AI | Audio | HMI | ISP

Click here to select SoC

SoC Selector

Designed by Realtek Designed by Partners

Designed by Partners

Module

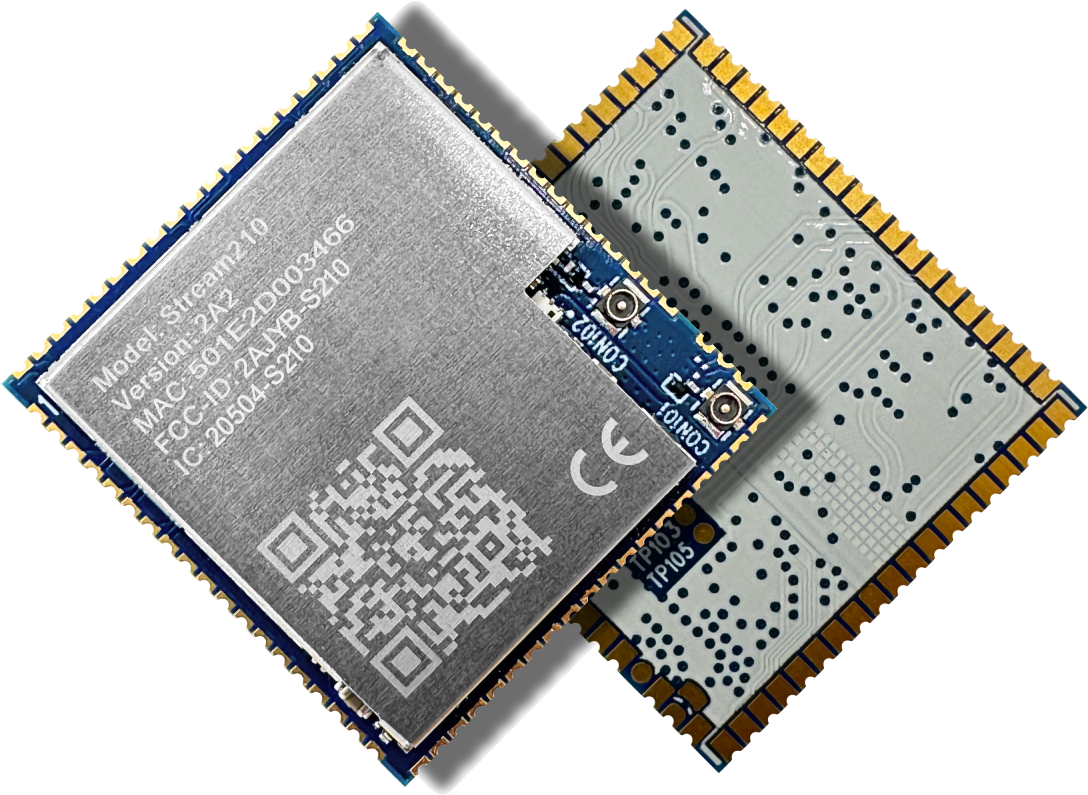

Stream210 (by Streamunlimited)

SoC

Datasheet

Related Datasheet

SoC Datasheet

Stream210

MCU

• SoC: RTL8730E
• Dual-core Arm Cortex-A32: up to 1.2GHz
• Embedded KM0 (Arm Cortex-M23 compatible, ultra-low-power)

Memory

• 256KB SRAM
• 2GB Flash
• 2GB DDR3L

Key Features

• Dual-band, Wi-Fi 6 (2.4 GHz & 5 GHz, 20 MHz)
• Bluetooth 5.3 with LE Audio
• Secure OTA updates (SSH, UART, web client, USB)
• Secure Boot, comprehensive driver support
• Low power design
• Compact form factor: 25.4mm x 27.5mm
• Modular certifications: FCC, IC, RED, MIC, SRRC

Other Features

• OS: Linux with StreamBSP (Yocto-based, customizable BSP)
• Interfaces: USB, SDIO, UART, I2C, SPI, SWD
• Display: MIPI-DSI, LCDC (up to 1024 x 768 @ 60Hz)
• Audio: AMIC, DMIC, AEC, VAD, Stereo DAC, I2S, headphone output
• Up to 46 GPIOs, LEDC, IR, ADC, PWM, 9 Cap-Touch channels
• Connectivity: WLAN (WPS, SoftAP, Infra), Bluetooth (AVRCP, A2DP, LE Audio)
• UI/UX: StreamAPI, WebUI, Remote UI with multilingual support
• Updates: USB & Internet upgrade options
• Field Use: USB external storage for data logging/config
