RTL872xD Modules and EVBs
Modules and Evaluation Boards
Integrates Realtek's Ameba wireless SoC, featuring powerful Wi-Fi and Bluetooth capabilities, as well as excellent RF performance
Arm®/RISC-V MCU | Wi-Fi | Bluetooth | AI | Audio | HMI | ISP
Click here to select SoC
SoC Selector
Designed by Realtek
Module
PKM8720DF-A00-F10
Module
PKM8720DF-C13-F10
EVB
AMB21
EVB
AMB23 (RTL8722DM MINI)
EVB
AMB25 (PKE8720DF-A00)
Related Certificates
Related Datasheets
Related User Manuals
PKM8720DF-A00-F10
MCU
- IC: RTL8720DF-VA1-CG
- 32-bit KM4 (Arm Cortex-M33 compatible), up to 200MHz
- 32-bit KM0 (Arm Cortex-M23 compatible), up to 20MHz
Memory
- KM4: 512KB SRAM
- KM0: 64KB SRAM
- 4MB Flash
Key Features
-
Wi-Fi
- 802.11 a/b/g/n 1x1, 2.4GHz & 5GHz
- Center frequency range of operating channel: 2412MHz ~ 2484MHz, 5180MHz ~ 5825MHz
- Support 20MHz/40MHz bandwidth, up to the data rate of MCS7
- Wi-Fi WEP, WPA, WPA2, WPA3, WPS; open, shared key, and pair-wise key authentication services
- Support low-power Tx/Rx for short-range application
- Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU)
-
Bluetooth Low Energy (BLE)
- Bluetooth Low Energy (BLE) 5.0
- Speed: 125Kbps, 500Kbps, 1Mbps, and 2Mbps
- Supports LE secure connections
- Supports LE scatternet
- Supports 3 Master links/1 Slave link
- Co-existence RF design between Wi-Fi and Bluetooth
Other Features
- 4 UART interfaces, baud rate up to 6MHz
- 2 I2C interfaces, two speed modes: standard up to 10Kbps, fast up to 400Kbps
- 2 SDIO Host/SDIO 2.0 Device interfaces, clock up to 50MHz
- 3 SPI Master/Slave interfaces, baud rate up to 50MHz
- 13 PWM channels with configurable duration and duty cycle from 0 ~ 100%
- 20 programmable GPIOs
- 2 GDMA controllers, each with 6 channels
- Connect external antenna through stamp hole
- Dimensions (mm): 12 x 12 x 2.5
- Operating input voltage: (3.3 ± 10%)V
- Operating ambient temperature: -20°C to 85°C
- Green certification: RoHS/REACH
Related Certificates
Related Datasheets
Related User Manuals
PKM8720DF-C13-F10
MCU
- IC: RTL8720DF-VT1-CG
- 32-bit KM4 (Arm Cortex-M33 compatible), up to 200MHz
- 32-bit KM0 (Arm Cortex-M23 compatible), up to 20MHz
Memory
- KM4: 512KB SRAM
- KM0: 64KB SRAM
- 4MB Flash
Key Features
-
Wi-Fi
- 802.11 a/b/g/n 1x1, 2.4GHz & 5GHz
- Center frequency range of operating channel: 2412MHz ~ 2484MHz, 5180MHz ~ 5825MHz
- Support 20MHz/40MHz bandwidth, up to the data rate of MCS7
- Wi-Fi WEP, WPA, WPA2, WPA3, WPS; open, shared key, and pair-wise key authentication services
- Support low-power Tx/Rx for short-range application
- Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU)
-
Bluetooth Low Energy (BLE)
- Bluetooth Low Energy (BLE) 5.0
- Speed: 125Kbps, 500Kbps, 1Mbps, and 2Mbps
- Supports LE secure connections
- Supports LE scatternet
- Supports 3 Master links/1 Slave link
- Co-existence RF design between Wi-Fi and Bluetooth
Other Features
- 4 UART interfaces, baud rate up to 6MHz
- 2 I2C interfaces, two speed modes: standard up to 10Kbps, fast up to 400Kbps
- 2 SDIO Host/SDIO 2.0 Device interfaces, clock up to 50MHz
- 3 SPI Master/Slave interfaces, baud rate up to 50MHz
- 13 PWM channels with configurable duration and duty cycle from 0 ~ 100%
- 20 programmable GPIOs
- 2 GDMA controllers, each with 6 channels
- Connect external antenna through stamp hole
- Dimensions (mm): 12 x 12 x 2.3
- Operating input voltage: (3.3 ± 10%)V
- Operating ambient temperature: -40°C to 105°C
- Green certification: RoHS/REACH
Related Datasheets
Purchase Channels
AMB21
MCU
- SoC: RTL8722DM
- 32-bit KM4 (Arm Cortex-M33 compatible)
- 32-bit KM0 (Arm Cortex-M23 compatible)
Memory
- 512KB SRAM
- 4MB PSRAM
- 2MB Flash
Key Features
- Integrated 802.11a/n Wi-Fi SoC
- Arm Trustzone-M Security
- Hardware SSL Engine
- Root Trust Secure Boot
- USB Host/Device
- SD Host
- BLE 5.0
- Audio Codec
- LCD Controller
- Key Matrix
Other Features
- 1 PCM interface
- 4 UART interfaces
- 1 I2S interface
- 2 I2C interfaces
- 7 ADC interfaces
- 17 PWM channels
- Max. 54 GPIOs
Related Datasheets
Purchase Channels
AMB23
MCU
- SoC: RTL8722DM
- 32-bit KM4 (Arm Cortex-M33 compatible)
- 32-bit KM0 (Arm Cortex-M23 compatible)
Memory
- 512KB SRAM
- 4MB PSRAM
- 2MB Flash
Key Features
- Integrated 802.11a/n Wi-Fi SoC
- Arm Trustzone-M Security
- Hardware SSL Engine
- Root Trust Secure Boot
- USB Host/Device
- SD Host
- BLE 5.0
- Audio Codec
- LCD Controller
- Key Matrix
Other Features
- 1 PCM interface
- 3 UART interfaces
- 1 I2C interface
- 7 ADC interfaces
- 1 SPI interface
- 9 PWM channels
- Max. 23 GPIOs
- 2 LEDs
- 1 Switch button
Related Datasheets
Related User Manuals
Purchase Channels

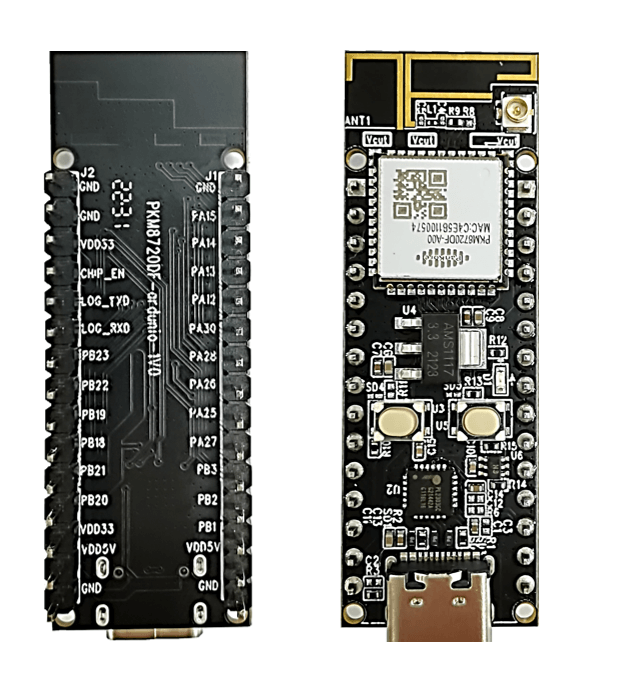

AMB25
MCU
- SoC: RTL8720DF
- 32-bit KM4 (Arm Cortex-M33 compatible)
- 32-bit KM0 (Arm Cortex-M23 compatible)
Memory
- 512KB SRAM
- 4MB Flash
Key Features
- Integrated Wi-Fi 4 (802.11 b/g/n 1x1) SoC
- Dual-band, 2.4GHz or 5GHz
- BLE 5.0
- Bluetooth high-power mode up to 10dB
- Low-power mode
- Auto download mode
- On-board PCB antenna
- Board dimension: 17.8mm x 51.8mm
Other Features
- 3 UART interfaces
- 1 I2C interface
- 2 SPI interfaces
- 12 PWM channels
- 3 ADC interfaces
- 1 IR interface
- Max. 19 GPIOs
- Type-C USB port
- 1 SDIO interface (require adaptor)
- Audio Codec (require external MIC & Speaker)
- USB 2.0 Host Interface (require adaptor)
