RTL8710E Modules and EVBs
Modules and Evaluation Boards
Integrates Realtek's Ameba wireless SoC, featuring powerful Wi-Fi and Bluetooth capabilities, as well as excellent RF performance
Arm®/RISC-V MCU | Wi-Fi | Bluetooth | AI | Audio | HMI | ISP
Click here to select SoC
SoC Selector
Designed by Realtek
Module
PKM8710ECF-C53-F20
Module
PKM8710ECF-D63-F20
EVB
PKE8710ECF-C53-F20
Related Certificates
Related Datasheets
Related User Manuals
Purchase Channels
Related EVBs

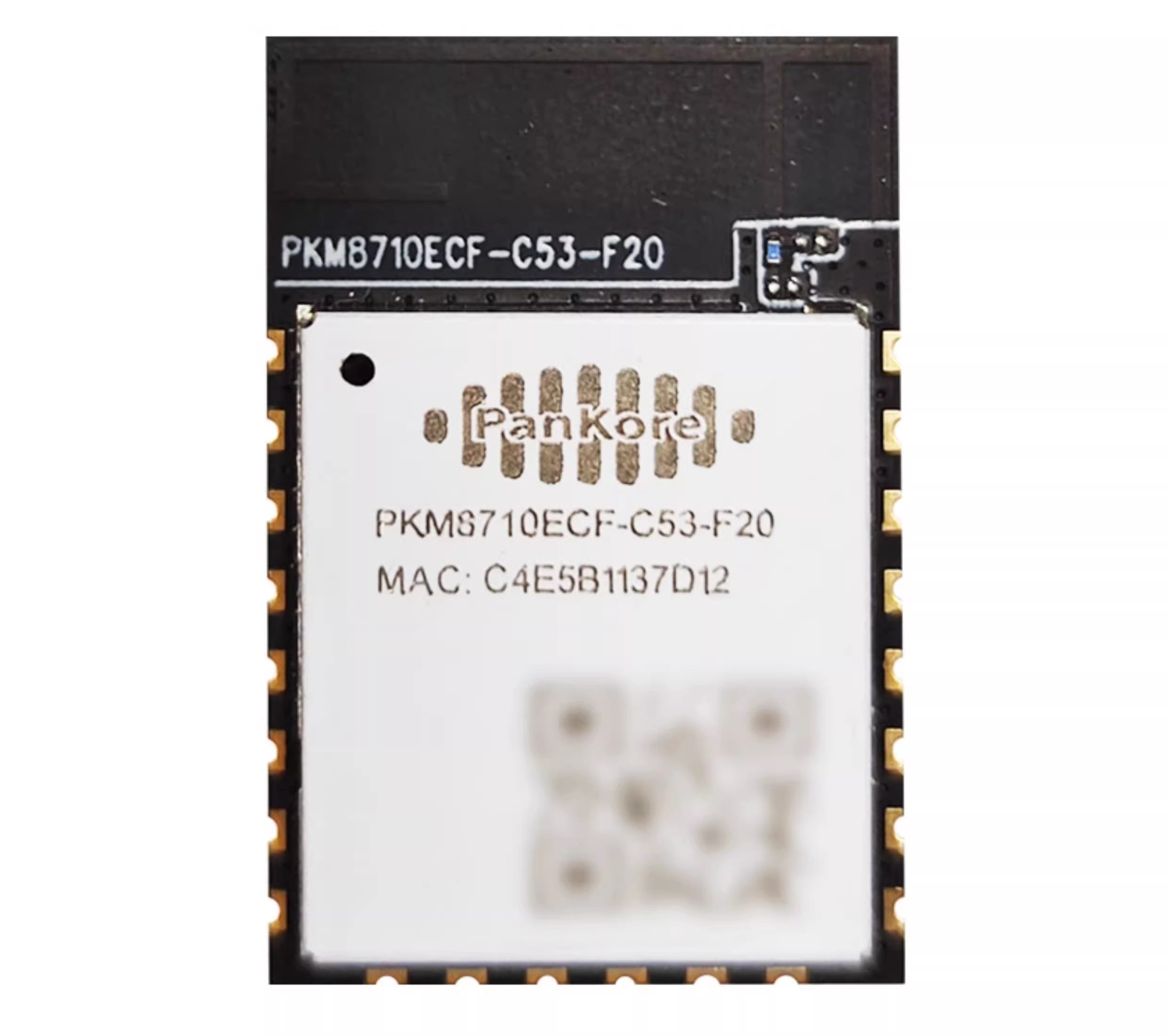

PKM8710ECF-C53-F20
MCU
- SoC: RTL8710ECF-VT3-CG
- KM4: up to 400MHz
- KR4: up to 400MHz
Memory
- 768KB SRAM
- 8MB Flash
Key Features
-
Wi-Fi
- 802.11 b/g/n/ax 1x1, 2.4GHz
- Center frequency range of operating channel: 2412MHz ~ 2484MHz
- Supports 20MHz bandwidth, up to the data rate of MCS9
- Wi-Fi WPA, WPA2, WPA3, WPS; open, shared key, and pair-wise key authentication services
- Power-saving mechanism
- Supports AP/STA/Concurrent mode (802.11ax AP not supported)
- Frame aggregation for increased MAC efficiency (A-MPDU)
-
Bluetooth Low Energy (BLE)
- BLE 5.2: LE-1M/LE-2M/LE-Coded PHY (long range)
- Supports both 500kbps and 125kbps LE-Coded PHY (long range)
- Support LE secure connections
- AoA and AoD (both connection-oriented and connectionless)
- Supports both flooding-mode and scatter-mode SIG mesh
- Supports scatter-net (concurrent central and peripheral mode)
- Co-existence RF design between Wi-Fi and Bluetooth
Other Features
- 4 UART interfaces, baud rate up to 8Mbps within high-speed mode (40MHz)
- 2 I2C interfaces, three speed modes: standard up to 100Kbps, fast up to 400Kbps, high to 3.4Mps
- 2 SPI Master/Slave interfaces, baud rate up to 50MHz
- 8 PWM channels with configurable duration and duty cycle from 0 ~ 100%
- 9 Cap-Touch channels
- 6 ADC channels
- 17 programmable GPIOs
- On-board PCB antenna
- Dimensions (mm): 16 x 24 x 2.8
- Operating input voltage: (3.3 ± 10%)V
- Operating ambient temperature: -40°C to 105°C
Related Certificates
Related Datasheets

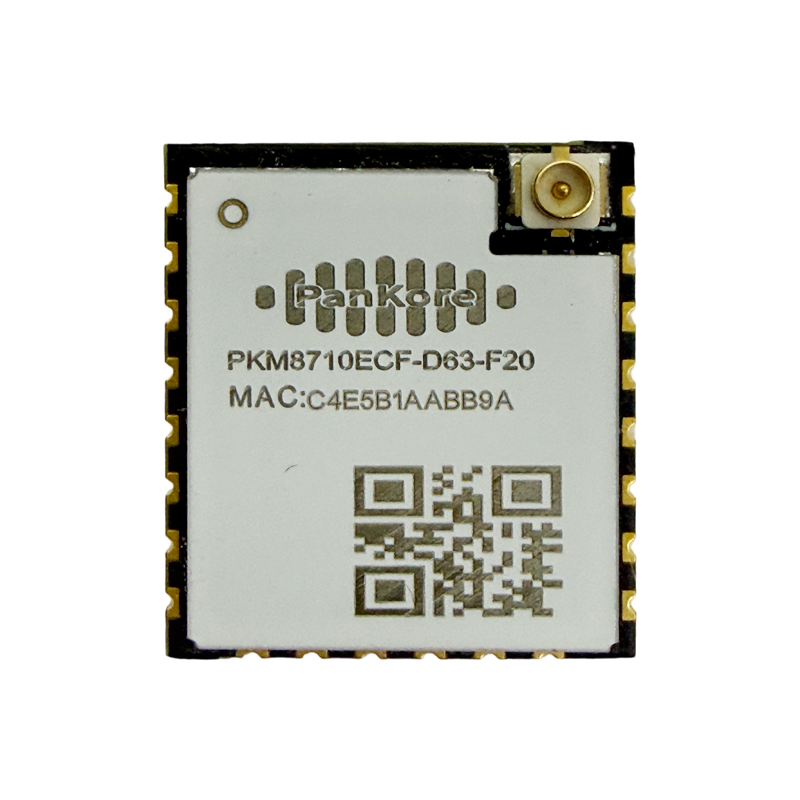

PKM8710ECF-D63-F20
MCU
- SoC: RTL8710ECF-VT3-CG
- KM4: up to 400MHz
- KR4: up to 400MHz
Memory
- 768KB SRAM
- 8MB Flash
Key Features
-
Wi-Fi
- 802.11 b/g/n/ax 1x1, 2.4GHz
- Center frequency range of operating channel: 2412MHz ~ 2484MHz
- Supports 20MHz bandwidth, up to the data rate of MCS9
- Wi-Fi WPA, WPA2, WPA3, WPS; open, shared key, and pair-wise key authentication services
- Power-saving mechanism
- Supports AP/STA/Concurrent mode (802.11ax AP not supported)
- Frame aggregation for increased MAC efficiency (A-MPDU)
-
Bluetooth Low Energy (BLE)
- BLE 5.2: LE-1M/LE-2M/LE-Coded PHY (long range)
- Supports both 500kbps and 125kbps LE-Coded PHY (long range)
- Support LE secure connections
- AoA and AoD (both connection-oriented and connectionless)
- Supports both flooding-mode and scatter-mode SIG mesh
- Supports scatter-net (concurrent central and peripheral mode)
- Co-existence RF design between Wi-Fi and Bluetooth
Other Features
- 4 UART interfaces, baud rate up to 8Mbps within high-speed mode (40MHz)
- 2 I2C interfaces, three speed modes: standard up to 100Kbps, fast up to 400Kbps, high to 3.4Mps
- 2 SPI Master/Slave interfaces, baud rate up to 50MHz
- 8 PWM channels with configurable duration and duty cycle from 0 ~ 100%
- 9 Cap-Touch channels
- 6 ADC channels
- 17 programmable GPIOs
- Connect external antenna through IPEX
- Dimensions (mm): 16 x 18 x 2.8
- Operating input voltage: (3.3 ± 10%)V
- Operating ambient temperature: -40°C to 105°C
Related Datasheets
Related User Manuals
Purchase Channels

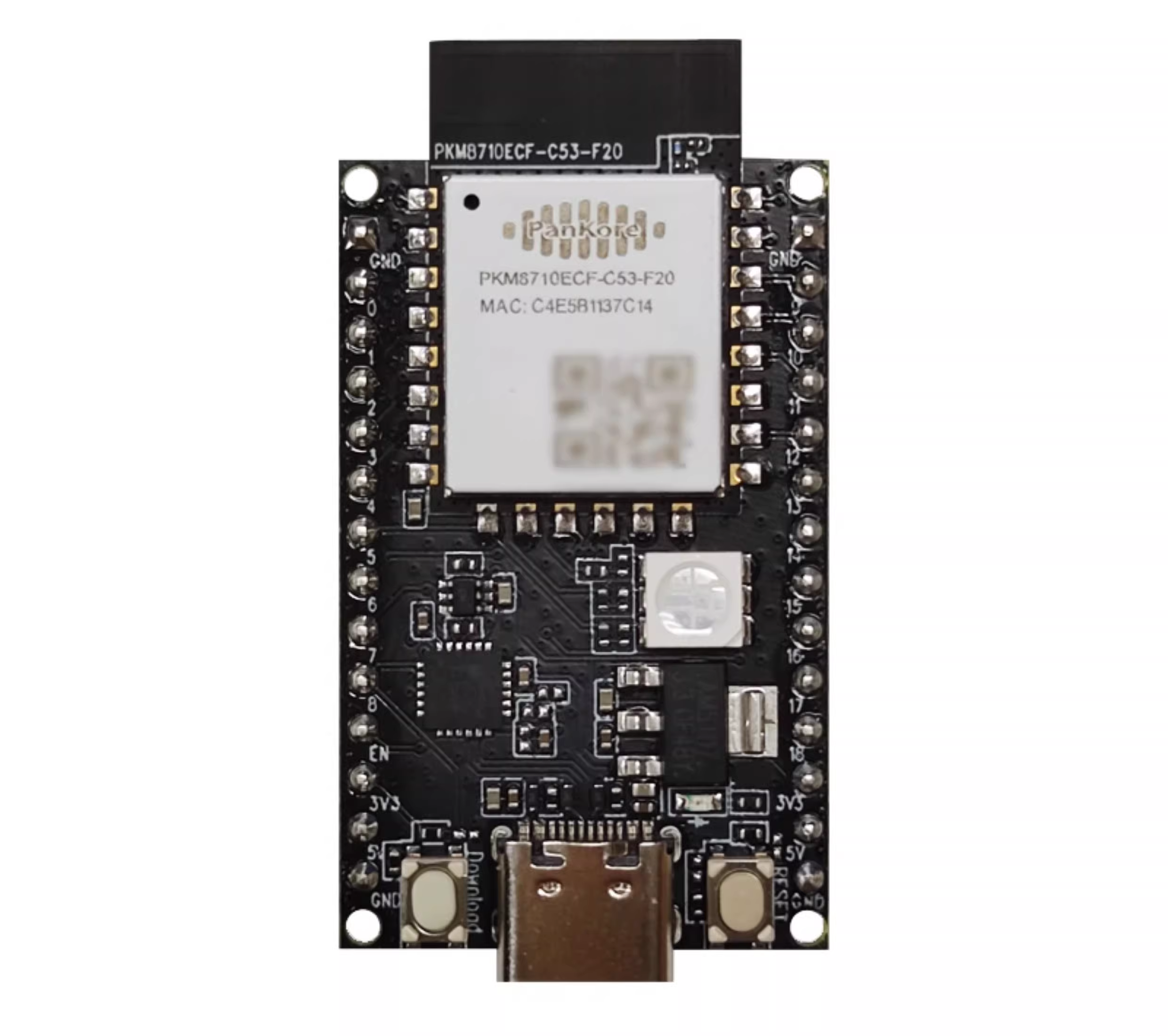

PKE8710ECF-C53-F20
MCU
- SoC: RTL8710ECF-VT3-CG
- KM4: up to 400MHz
- KR4: up to 400MHz
- Module: PKM8710ECF-C53-F20
Memory
- 768KB SRAM
- 8MB Flash
Key Features
-
Wi-Fi
- 802.11 b/g/n/ax 1x1, 2.4GHz
- Center frequency range of operating channel: 2412MHz ~ 2484MHz
- Supports 20MHz bandwidth, up to the data rate of MCS9
- Wi-Fi WPA, WPA2, WPA3, WPS; open, shared key, and pair-wise key authentication services
- Power-saving mechanism
- Supports AP/STA/Concurrent mode (802.11ax AP not supported)
- Frame aggregation for increased MAC efficiency (A-MPDU)
-
Bluetooth Low Energy (BLE)
- BLE 5.2: LE-1M/LE-2M/LE-Coded PHY (long range)
- Supports both 500kbps and 125kbps LE-Coded PHY (long range)
- Support LE secure connections
- AoA and AoD (both connection-oriented and connectionless)
- Supports both flooding-mode and scatter-mode SIG mesh
- Supports scatter-net (concurrent central and peripheral mode)
- Co-existence RF design between Wi-Fi and Bluetooth
Other Features
- 4 UART interfaces, baud rate up to 8Mbps within high-speed mode (40MHz)
- 2 I2C interfaces, three speed modes: standard up to 100Kbps, fast up to 400Kbps, high to 3.4Mps
- 2 SPI Master/Slave interfaces, baud rate up to 50MHz
- 8 PWM channels with configurable duration and duty cycle from 0 ~ 100%
- 9 Cap-Touch channels
- 6 ADC channels
- 17 programmable GPIOs
- Operating input voltage: (3.3 ± 10%)V
- Operating ambient temperature: -40°C to 105°C

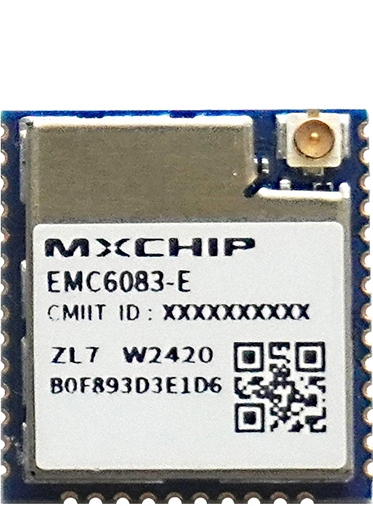

Designed by Partners
Coming soon...
