Mode Configuration

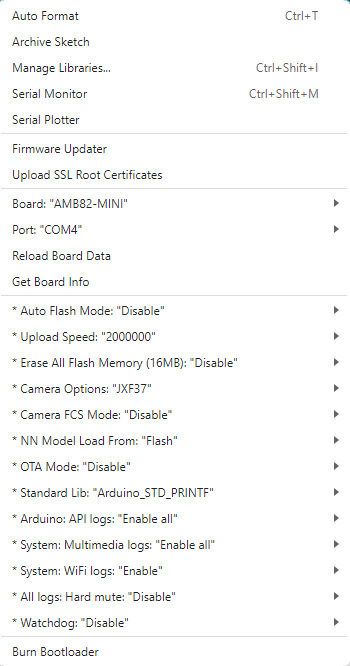

Compilation and upload options can be configured via the menu in Arduino IDE. Available mode configuration options vary by board — select your board to view the relevant options.
Mode Name |
Options |
Description |
|---|---|---|
Auto Flash Mode |
Disable / Enable |
Disable: Upload mode must be entered manually.
Enable: Upload mode is entered automatically.
|
Upload Speed |
2000000 / 1000000 / 230400 |
Sets the upload baud rate. |
Erase All Flash Memory (16MB) |
Disable / Erase only / Erase then Upload |
Disable: Flash is not erased.
Erase only: Erases the entire Flash.
Erase then Upload: Erases Flash then uploads the current sketch.
|
Camera Options |
JFX37, JFX53, GC2053, GC4653, GC5035, IMX307, IMX327, IMX662, PS5268, OV9734, SC2336 |
Select the camera sensor model in use. |
Camera FCS Mode |
Disable / Enable |
Enable: Enables camera FCS mode (sensor must support it). |
NN Model Load From |
Flash / SD Card |
Flash: Loads the neural network AI model from Flash.
SD Card: Loads from SD card; capacity depends on SD card size.
|
OTA Mode |
Disable / Enable |
Enable: Enables OTA (Over-The-Air) update mode. |
Standard Lib |
Arduino_STD_PRINTF / Disable |
Arduino_STD_PRINTF: Compiles and uploads using standard library functions.
Disable: Standard library functions are not used.
|
Arduino: API logs |
Enable all / Error logs / Info logs / Disable all |
Enable all: Enables all Arduino API logs (error, info, debug).
Error logs: Shows error logs only.
Info logs: Shows general info logs.
Disable all: Disables all Arduino API logs.
|
System: Multimedia logs |
Enable all / Video-OSD only / NN-OSD only / Disable all |
Enable all: Enables all multimedia logs.
Video/OSD logs only: Enables video and OSD logs only.
NN/OSD logs only: Enables neural network and OSD logs only.
Disable all: Disables NN, video, and OSD logs.
|
System: WiFi logs |
Enable / Disable |
Enable: Enables Wi-Fi driver logs.
Disable: Disables Wi-Fi driver logs.
|
All logs: Hard mute |
Disable / Enable |
Enable: Completely disables all logs (including printf). Not recommended during debugging. |
Watchdog |
Disable / Enable |
Enable: Enables the watchdog function. |
