Ameba AI Introduction

Overview

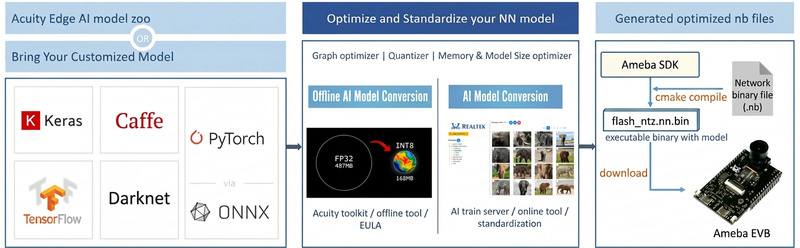

Ameba AI is a comprehensive artificial intelligence (AI) solution designed for Realtek AmebaAIoT SoC. It provides developers with powerful tools and libraries to implement AI functionalities in their applications. With the help of the NN hardware engine to accelerate the inference process, SoCs support a wide range of AI applications, including audio classification, object detection, and more. It is optimized for performance and efficiency, allowing developers to run NN models on resource-constrained devices without compromising on functionality. Ameba AI is designed to be user-friendly and accessible, with comprehensive documentation and examples to help developers get started quickly. Whether you are a beginner or an experienced AI developer, Ameba AI provides the tools and resources you need to bring your AI projects to life.

../../_images/ameba_edge_ai_intro.png

Ameba NN

RTL8735B:

RTL8735B has an NN H/W engine to accelerate the neural network inference process. NN models obtained from different AI frameworks, such as Keras, TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX, Darknet and others, can be converted to a network binary graph (.nb) file by Verisilicon’s Acuity Toolkit. The converted model can then be deployed on RTL8735B and executed using the provided SDK examples.

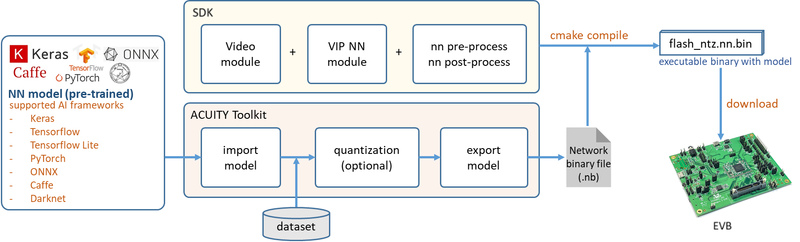

The following figure illustrates the overall NN model deployment workflow:

../../_images/NN_model_workflow.png

NN model workflow

Using Customized NN Models

This section provides a high-level overview of deploying a pre-trained model on Ameba. The detailed step-by-step instructions are covered in later sections of this guide.

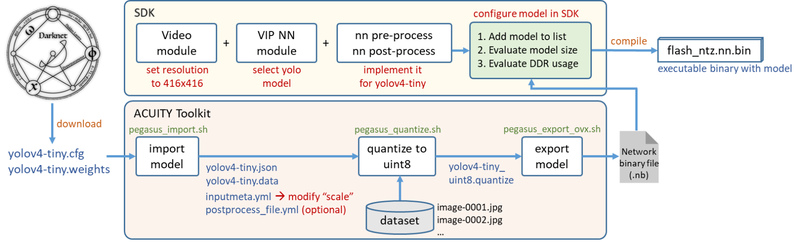

../../_images/yolov4_workflow.png

YOLOv4-tiny deployment workflow

The general deployment workflow consists of the following stages:

  1. Model Training: Choose a suitable NN model based on your target AI application and train it using a compatible framework.

  2. Model Conversion: Use the Acuity Toolkit to convert and quantize the trained model into an .nb network binary file.

  3. Model Deployment: Integrate the .nb file into the SDK, implement pre-processing and post-processing, and build the firmware.

  4. Inference Execution: Run the deployed model on the device to perform AI inference.

Supported NN Models

The FreeRTOS and Arduino SDKs support the following NN model types. Customized models can be added following the deployment guides.

RTL8735B:
Pre-deployed NN models in SDK

Category

Model

Repository

Object detection

Yolov3-tiny, Yolov4-tiny, Yolov7-tiny

https://github.com/AlexeyAB/darknet

Object detection

YOLOv7-tiny-pt

https://github.com/WongKinYiu/yolov7

Face detection

SCRFD

https://github.com/deepinsight/insightface/tree/master/detection/scrfd

Face Recognition

MobileFaceNet

https://github.com/deepinsight/insightface/tree/master/recognition

Sound classification

YAMNet

https://github.com/tensorflow/models/tree/master/research/audioset/yamnet

Reference: NN Model Zoo

Supported AI Frameworks

The Acuity Toolkit supports model conversion from the following AI frameworks:

Supported AI frameworks and import formats

AI Framework

Import File Format

Caffe

.caffemodel

TensorFlow

.pb

TensorFlow Lite

.tflite

Darknet

.cfg

ONNX

.onnx

PyTorch

.pt

Keras

.h5

Note

No quantization is needed on Acuity Networks converted from ONNX, TensorFlow and TensorFlow Lite models that have been already quantized. Kindly note that per-channel quantized models are NOT supported on the NPU — please ensure your model uses per-tensor quantization.

Tip

For PyTorch framework, you are highly recommended to export your model in .onnx format first to ensure successful conversion.

Supported Model Quantization Types

To run an NN model with the full capability of the HW accelerator, the model must be quantized with a supported quantization type.

Supported quantization types are as follows:

RTL8735B:
NPU HW supported quantization type

Quantizer

Qtype

Per-channel or per-tensor

asymmetric_affine

uint8

only per-tensor

dynamic_fixed_point

int8/int16

only per-tensor

The NPU has three main units: NN, TP, and PPU (SHADER). NN and TP are HW accelerators; PPU(SHADER) is a general programmable unit. NN/TP only support the quantization types listed above. Other quantization types will run on PPU, which is significantly slower.

Use the NBinfo tool (included in the Acuity Toolkit) to check which unit each operation in your exported model will run on.

Note

Vendor recommends importing the original float32 model into Acuity Toolkit and performing quantization with Acuity’s quantization script. Models quantized by other training frameworks (e.g., TensorFlow) should still use the supported quantization types listed above.
