Hand Gesture Detection

Materials

Example

In this example, we will be using development board to detect palm gestures.

Open hand gesture detection examples in File -> Examples -> AmebaNN -> HandGestureDetection

../../_images/image018.png

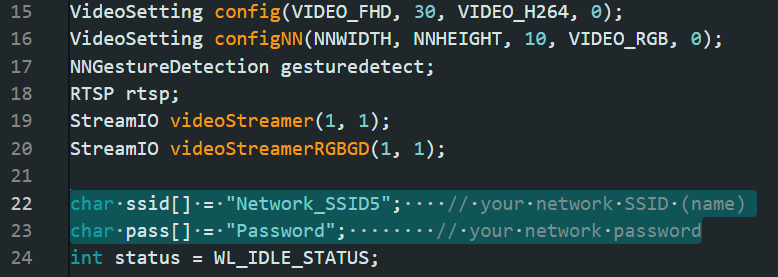

In the highlighted code snippet, fill in the “ssid” with your WiFi network SSID and “pass” with the network password.

../../_images/image028.png

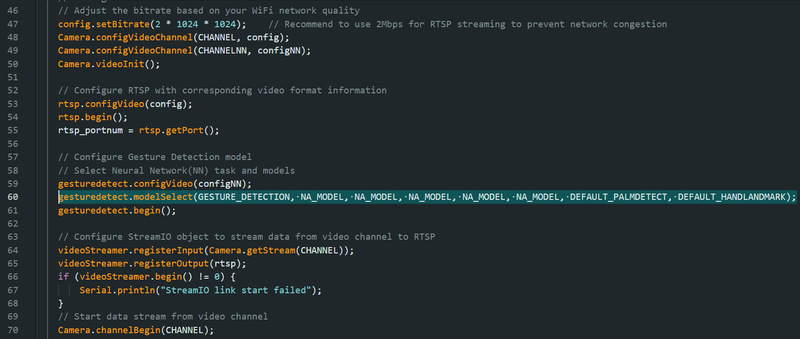

Select Neural Network (NN) task and models using modelSelect() function highlighted in yellow. This function takes 8 arguments: Neural Network task, Object Detection model, Face Detection model, Face Recognition model, Audio Classification model, Image Classification model, Palm Detection model and HandLandmark model. Replace with “NA_MODEL” if they are not necessary for your selected Neural Network task. Note that it is mandatory to call modelSelect() function before calling the begin() function.

  • Valid Neural Network task: OBJECT_DETECTION, FACE_DETECTION, FACE_RECOGNITION, AUDIO_CLASSIFICATION, IMAGE_CLASSIFICATION, GESTURE_DETECTION

  • Valid Object Detection model:

    • YOLOv3-tiny model: DEFAULT_YOLOV3TINY, CUSTOMIZED_YOLOV3TINY

    • YOLOv4-tiny model: DEFAULT_YOLOV4TINY, CUSTOMIZED_YOLOV4TINY

    • YOLOv7-tiny model: DEFAULT_YOLOV7TINY, CUSTOMIZED_YOLOV7TINY

  • Valid Face Detection model: DEFAULT_SCRFD, CUSTOMIZED_SCRFD

  • Valid Face Recognition model: DEFAULT_MOBILEFACENET, CUSTOMIZED_MOBILEFACENET

  • Valid Audio Classification model: DEFAULT_YAMNET, CUSTOMIZED_YAMNET

  • Valid Image Classification model: DEFAULT_IMGCLASS, CUSTOMIZED_IMGCLASS

  • Valid Hand Gesture Detection model: DEFAULT_HANDLANDMARK, CUSTOMIZED_HANDLANDMARK

Choose the customized option (e.g., CUSTOMIZED_YOLOV4TINY/ CUSTOMIZED_SCRFD/ CUSTOMIZED_MOBILEFACENET) if you would like to use your own NN model. To learn about the process of converting an AI model, refer to AI Model Conversion Toolkit . Additionally, refer to AI Model Deployment Guide to understand how to install and use the converted model.

../../_images/image037.png

Compile the code and upload it to Ameba. After pressing the Reset button, wait for the board to connect to the WiFi network. The board’s IP address and network port number for RTSP will be shown in the Serial Monitor.

The result of detected objects can be validated using VLC. You may download VLC media player from the link here

Upon the completion of the software installation, open VLC media player, and go to Media -> Open Network Stream

../../_images/image045.png

Make sure your PC is connected to the same network as the board for streaming. Since RTSP is used as the streaming protocol, key in rtsp://{IPaddress}:{port} as the Network URL in VLC media player, replacing {IPaddress} with the IP address of the board, and {port} with the RTSP port shown in Serial Monitor e.g., rtsp://192.168.1.154:554 The default RTSP port number is 554.

../../_images/image055.png

Next, click “Play” to start RTSP streaming to see the result. The video stream from the camera will be shown in VLC media player.

Code Reference

You may adjust the video bitrate based on your WiFi network quality, by uncommenting the highlighted code below.

../../_images/image063.png
