RTL8721Dx Modules
Modules
Integrates Realtek's Ameba wireless SoC, featuring powerful Wi-Fi and Bluetooth capabilities, as well as excellent RF performance
ARM®/RISC-V MCU | Wi-Fi | Bluetooth | AI | Audio | HMI
| Module | Description | Antenna | Pins | Footprint | Flash | PSRAM | Dimensions (mm) | Buy |
|---|---|---|---|---|---|---|---|---|
|
PKM8721DAF-C13-F10 IC: RTL8721DAF-VT2-CG Module Datasheet EVB User Guide |
A dual-band Wi-Fi 4 + BLE 5.0 module. Based on excellent ultra-low power consumption, a rich set of peripheral interfaces and high performance, it serves as an ideal choice for smart home, industrial automation, consumer electronics and other fields. |
PCB Antenna | 22 | 4MB | - | 16 x 24 x 2.8 |
Module:
 EVB:
|
|
|
PKM8721DAF-D23-F10 IC: RTL8721DAF-VT2-CG Module Datasheet EVB User Guide |
A dual-band Wi-Fi 4 + BLE 5.0 module. Based on excellent ultra-low power consumption, a rich set of peripheral interfaces and high performance, it serves as an ideal choice for smart home, industrial automation, consumer electronics and other fields. |
IPEX Connector | 22 | 4MB | - | 16 x 18 x 2.8 |
Module:
EVB*:

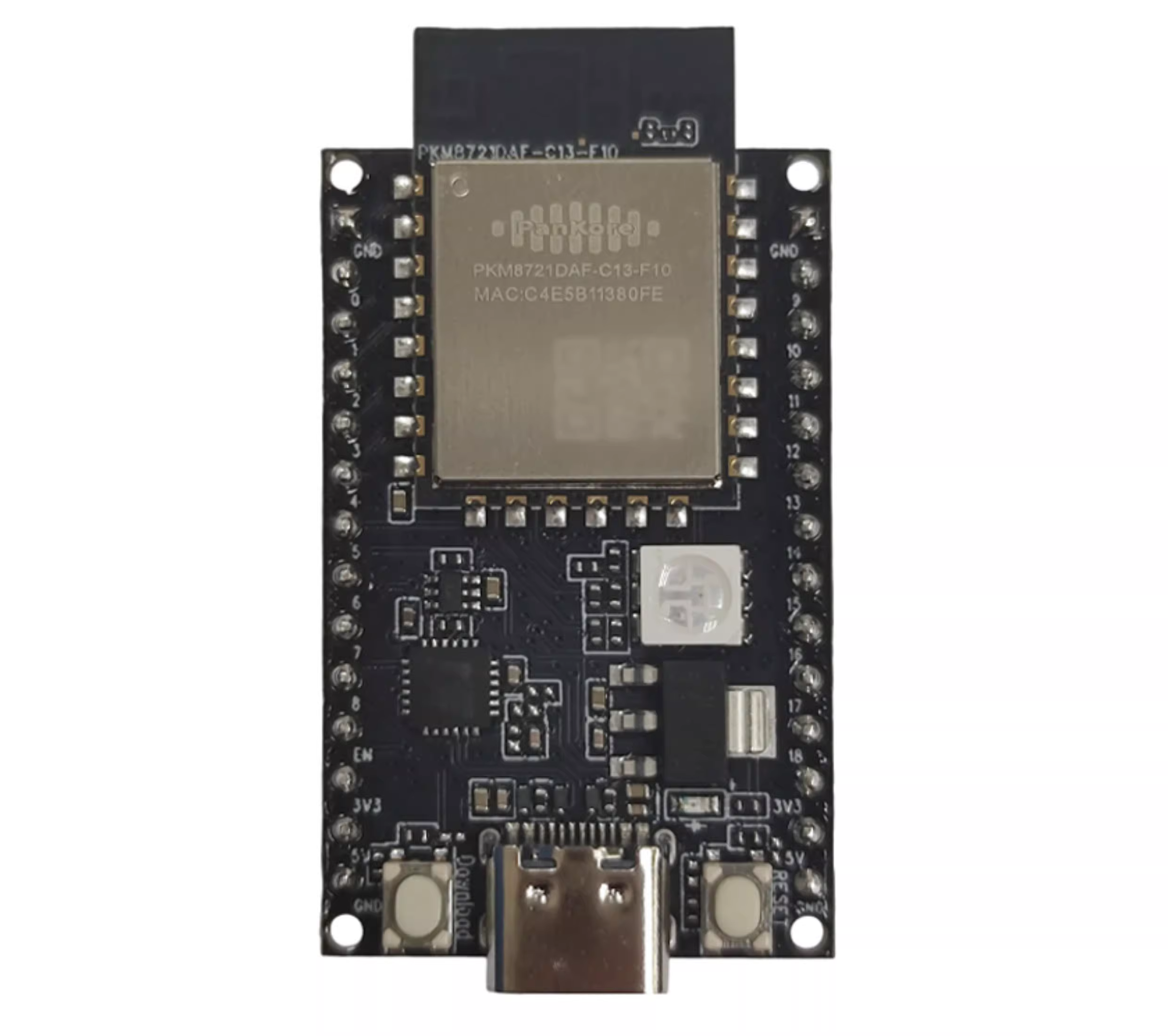

Note: The module equipped on this EVB is PKM8721DAF-C13-F10. The only difference between the two modules is the antenna connection. |
|
|

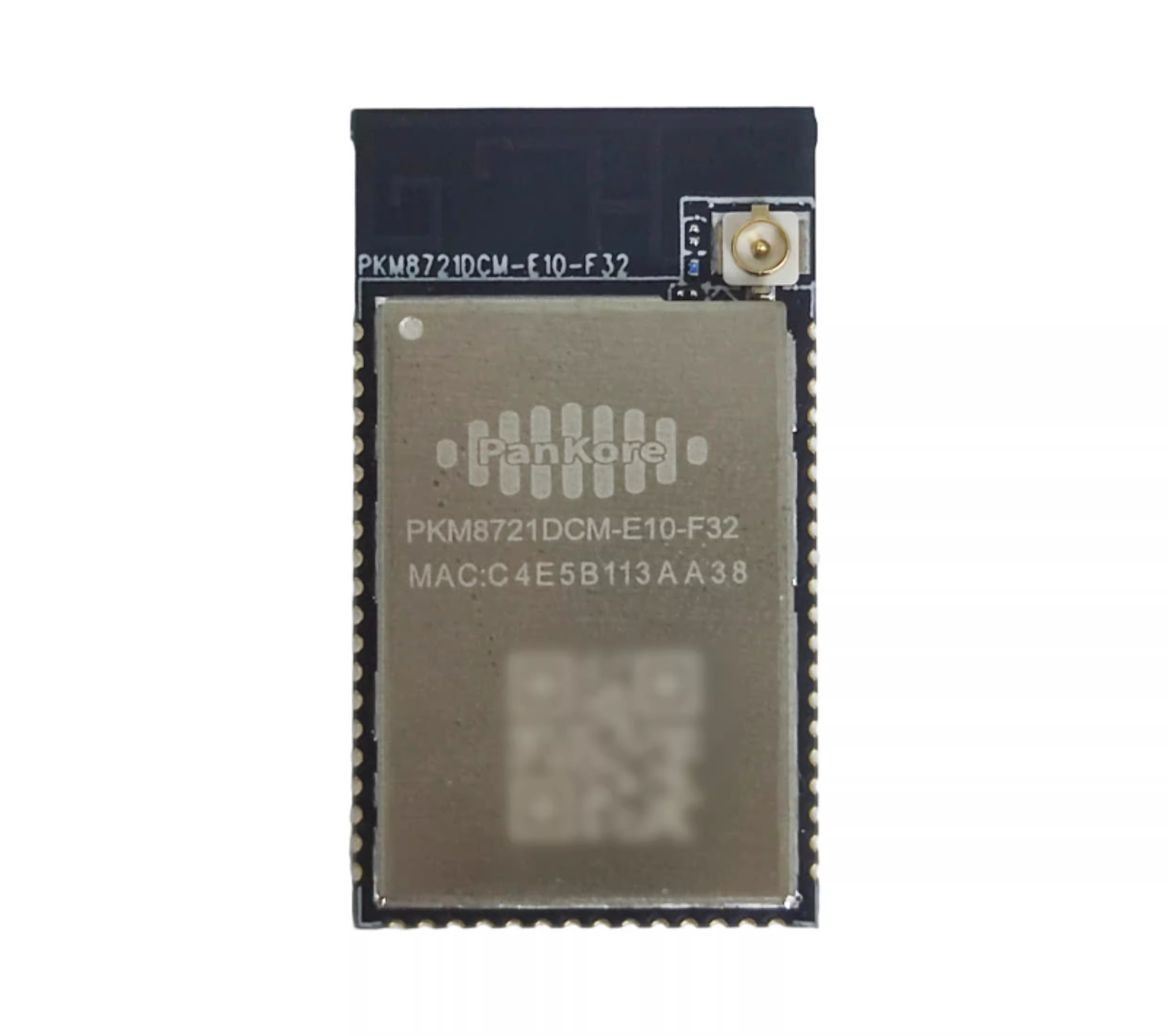

PKM8721DCM-E10-F32 IC: RTL8721DCM-VA3-CG Module Datasheet EVB User Guide |
A dual-band Wi-Fi 4 + BLE 5.0 module. The embedded PSRAM supports running basic AI algorithms. With a rich set of peripheral interfaces and high performance, it serves as an ideal choice for fields such as AI toys and consumer electronics. |
PCB Antenna | 54 | 16MB | 8MB | 16 x 29 x 2.8 |
Module:
EVB:
|
