Overview

AFE is audio signal processing module for enhancing speech signals. It can improve robustness of speech recognition system or improve signal quality of communication system.

In AIVoice, AFE includes submodules:

• AEC (Acoustic Echo Cancellation)

• BF (Beamforming)

• NS (Noise Suppression)

• AGC (Automatic Gain Control)

• SSL (Sound Source Localization)

Currently SDK provides libraries for five microphone arrays:

• 1mic

• 2mic_30mm

• 2mic_50mm

• 2mic_70mm

• 3mic_50mm

Other microphone arrays or performance optimizations can be provided through customized services.

Note

Among them, the 50mm in the microphone array 3mic_50mm refers to the distance between adjacent microphones.

Refer to Event and Callback Message to see AFE’s output.

Algorithm Description

AFE Flow Diagram

• Single Mic

• Multi Mic

AFE Mode

AFE includes two modes, corresponding to two typical usage scenarios: speech recognition and voice communication.

Usage scenarios	Mode configuration	Mode description
Speech recognition	afe_mode = AFE_FOR_ASR	When the processed data is used for ASR or KWS, it should be configured to this mode. In this mode, more attention is paid to speech distortion, and the tolerance for echo residue and background noise is higher.
Voice communication	afe_mode = AFE_FOR_COM	When used in the voice communication scenario, it should be configured to this mode. In this mode, more attention is paid to avoiding echo leakage, and a certain degree of speech distortion is acceptable.

Note

In the Voice communication mode, the external interface supports 1mic and 2mic, while the internal algorithm only supports 1mic. When 2mic input is used, the internal algorithm calls the 1mic algorithm and uses the data from mic1 and ref.

Input Format

• Single Mic

  • Input audio data format: 16kHz, 16 bit, two channels (one is mic data, another is ref data). If AEC is not required, the input is single-channel of mic data.

  • The frame length of input audio data is fixed at 256 samples.

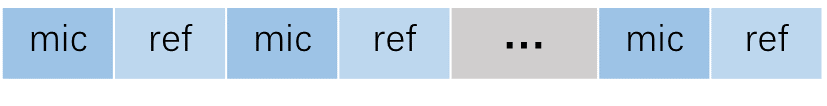

  • The input data is arranged as follows:



• Dual Mic

  • Input audio data format: 16kHz, 16 bit, three channels (two are mic data, another is ref data). If AEC is not required, the input is two-channels of mic data.

  • The frame length of input audio data is fixed at 256 samples.

  • The input data is arranged as follows:



• Three Mic

  • Input audio data format: 16kHz, 16 bit, four channels (three are mic data, another is ref data). If AEC is not required, the input is three-channels of mic data.

  • The frame length of input audio data is fixed at 256 samples.

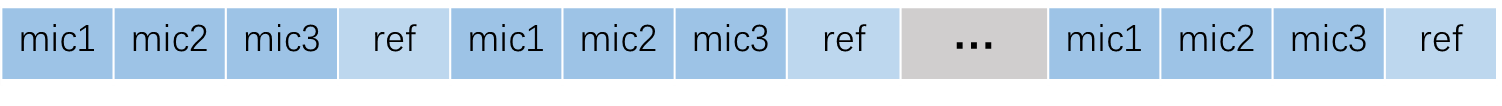

  • The input data is arranged as follows:



  • If SSL module is enabled, the microphone positions corresponding to the mic data should be arranged counterclockwise. Refer to SSL (Sound Source Localization) .

Note

If AEC is not required, Set related parameters as follows: enable_aec = false, ref_num = 0.

Configurations

Definition of Configuration Parameters

AFE configuration includes microphone array, working mode, submodule switches, etc.

typedef struct afe_config{

    // AFE common parameter
    afe_mic_geometry_e  mic_array;          // microphone array. Make sure to choose the matched resource library
    int ref_num;                            // reference channel number, must be 0 or 1. AEC will be disabled if ref_num=0.
    int sample_rate;                        // sampling rate(Hz), must be 16000
    int frame_size;                         // frame length(samples), must be 256

    afe_mode_e afe_mode;                    // AFE mode, for ASR or voice communication.
    bool enable_aec;                        // AEC(Acoustic Echo Cancellation) module switch
    bool enable_ns;                         // NS(Noise Suppression) module switch
    bool enable_agc;                        // AGC(Automation Gain Control) module switch
    bool enable_ssl;                        // SSL(Sound Source Localization) module switch.

    // AEC module parameter
    afe_aec_mode_e aec_mode;                // AEC mode, signal process or NN method. NN method is not supported in current version.
    int aec_enable_threshold;               // ref signal amplitude threshold for AEC, the value should be in [0, 100].
                                            // larger value means the minimum echo to be cancelled will be larger.
    bool enable_res;                        // AEC residual echo suppression module switch
    afe_aec_filter_tap_e aec_cost;          // higher cost means longer filter length and more echo reduction
    afe_aec_res_aggressive_mode_e res_aggressive_mode;  // higher mode means more residual echo suppression but more distortion

    // NS module parameter
    afe_ns_mode_e ns_mode;                  // NS mode, signal process or NN method. NN method is only supports voice communication mode.
    afe_ns_cost_mode_e ns_cost_mode;        // low cost mode means 1channel NR and poorer noise reduction effect
    afe_ns_aggressive_mode_e ns_aggressive_mode;        // higher mode means more stationary noise suppression but more distortion

    // AGC module parameter
    int agc_fixed_gain;                     // AGC fixed gain(dB) applied on AFE output, the value should be in [0, 18].
    bool enable_adaptive_agc;               // adaptive AGC switch. Only supports voice communication mode.

    // SSL module parameter
    float ssl_resolution;                   // SSL solution(degree)
    int ssl_min_hz;                         // minimum frequency(Hz) of SSL module.
    int ssl_max_hz;                         // maximum frequency(Hz) of SSL module.
} afe_config_t;

If you need to change mic_array, both configuration and afe resource library should change accordingly. Refer to ${aivoice_lib_dir}/include/aivoice_afe_config.h for details.

Attention

Make sure the mic_array and ref_num in configuration match AFE input audio.

Preset Parameters

Preconfigured parameters for different microphone arrays and AFE modes are defined in ${aivoice_lib_dir}/include/aivoice_afe_config.h:

Microphone Array	Speech Recognition Mode	Voice Call Mode
1mic	AFE_CONFIG_ASR_DEFAULT_1MIC	AFE_CONFIG_COM_DEFAULT_1MIC
2mic30mm	AFE_CONFIG_ASR_DEFAULT_2MIC30MM	AFE_CONFIG_COM_DEFAULT_2MIC30MM
2mic50mm	AFE_CONFIG_ASR_DEFAULT_2MIC50MM	AFE_CONFIG_COM_DEFAULT_2MIC50MM
2mic70mm	AFE_CONFIG_ASR_DEFAULT_2MIC70MM	AFE_CONFIG_COM_DEFAULT_2MIC70MM
3mic50mm	AFE_CONFIG_ASR_DEFAULT_3MIC	Not Supported

Hardware Design Requirements

Refer to Audio Hardware Design Requirements
