Power Consumption Measurement

This section, based on the default SDK, provides two low-power consumption examples—Wi-Fi Wakeup and GPIO Wakeup—to help users quickly get familiar with and validate the low-power solution.

GPIO Wakeup Test

Test Environment and Tools Preparation

  1. Hardware: The target development board, USB Type-C cable, testing computer, and Dupont wires (for connecting test pins and VCC/GND)

  2. Serial debugging tool: Used to observe the running status of the board and to send test commands

  3. Measuring equipment: Current source (or voltage source) or digital multimeter, and the corresponding host software

Test Code

The following is the test code using PA3 as the wakeup source. Add it to project_km4tz/src/main.c or project_km4/src/main.c, and call the test function near the end of the main function:

void gpio_irq_handler(void *id, u32 event)
{
     UNUSED(id);

     u32 GPIO_Pin = (event >> 16);
     u8 port_num = PORT_NUM(GPIO_Pin);
     GPIO_TypeDef *GPIO = (GPIO_TypeDef *)(GPIO_REG_BASE + port_num * 0x400);

     /* 0:AP; 1:NP */
     RTK_LOGI(TAG, "Core %d GPIO_IRQ_HANDLED %x!\n", SYS_CPUID(), GPIO_Pin);

     RTK_LOGI(TAG, "GPIO_INT_STATUS = 0x%x\n", GPIO->GPIO_INT_STATUS);

     GPIO_INTConfig(GPIO_Pin, DISABLE);

}
void gpio_test(void)
{
     GPIO_InitTypeDef GPIO_InitStruct = {
             .GPIO_Pin = _PA_3,
             .GPIO_PuPd = GPIO_PuPd_UP,
             .GPIO_Mode = GPIO_Mode_INT,
             .GPIO_ITTrigger = GPIO_INT_Trigger_EDGE,
             .GPIO_ITPolarity = GPIO_INT_POLARITY_ACTIVE_LOW,
     };
     GPIO_INTConfig(_PA_3, DISABLE);
     GPIO_Init(&GPIO_InitStruct);
     InterruptRegister(GPIO_INTHandler, GPIOA_IRQ, (u32)GPIOA_BASE, 3);
     InterruptEn(GPIOA_IRQ, 3);
     GPIO_UserRegIrq(_PA_3, gpio_irq_handler, &GPIO_InitStruct);
     SOCPS_SetAPWakeEvent(WAKE_SRC_GPIOA, ENABLE);
     GPIO_INTConfig(_PA_3, ENABLE);
}

Test Procedure

The following testing procedure is based on the official development board:

  1. Refer to the schematic and remove the 0-ohm resistor between VDD33 and VDD33_S pins on the development board.

  2. Connect the positive of a voltage source (must output 3.3V) to the VDD33_S pin, and the negative to the GND pin. Then open the voltage source’s host software and set the source output to 3.3V.

  3. Connect the development board and PC using a USB Type-C cable.

  4. Configure the GPIO test code.

  5. Compile and download the firmware with GPIO wakeup configuration to the target board.

  6. Open the serial debug software, select the COM port of the development board, and press chip en briefly.

  7. Open the voltage source host software and view the current waveform.

  8. After log output is finished, enter the test command AT+TICKPS=R to enter sleep mode, and observe the current waveform on the voltage source software at this moment.

  9. Connect one end of a Dupont wire to PA3 and briefly touch the other end to GND to wake up the CPU. The serial port will print out interrupt logs and you can also observe the current value change on the voltage source host software.

Note

If using a digital multimeter, set it to current mode, and connect the positive lead to VDD33 and the negative lead to VDD33_S.

After entering the command AT+TICKPS=R, the CPU enters sleep; after detecting the falling edge of GPIO, the CPU is woken up to execute the interrupt handler, and then goes back to sleep. The log when waking up from sleep by GPIO is shown below:

15:06:14.019 AT+TICKPS=R
15:06:14.019
15:06:14.019 [MEM] After do cmd, available heap 4450176
15:06:14.019
15:06:14.019
15:06:14.019 #
15:06:14.019 APPG
15:06:14.019 NPPG
15:06:18.035 NPPW
15:06:18.035 APPW
15:06:18.035 [MAIN-I] Core 0 GPIO_IRQ_HANDLED 3!
15:06:18.035 [MAIN-I] GPIO_INT_STÄTUS = 0x0
15:06:18.035 APPG

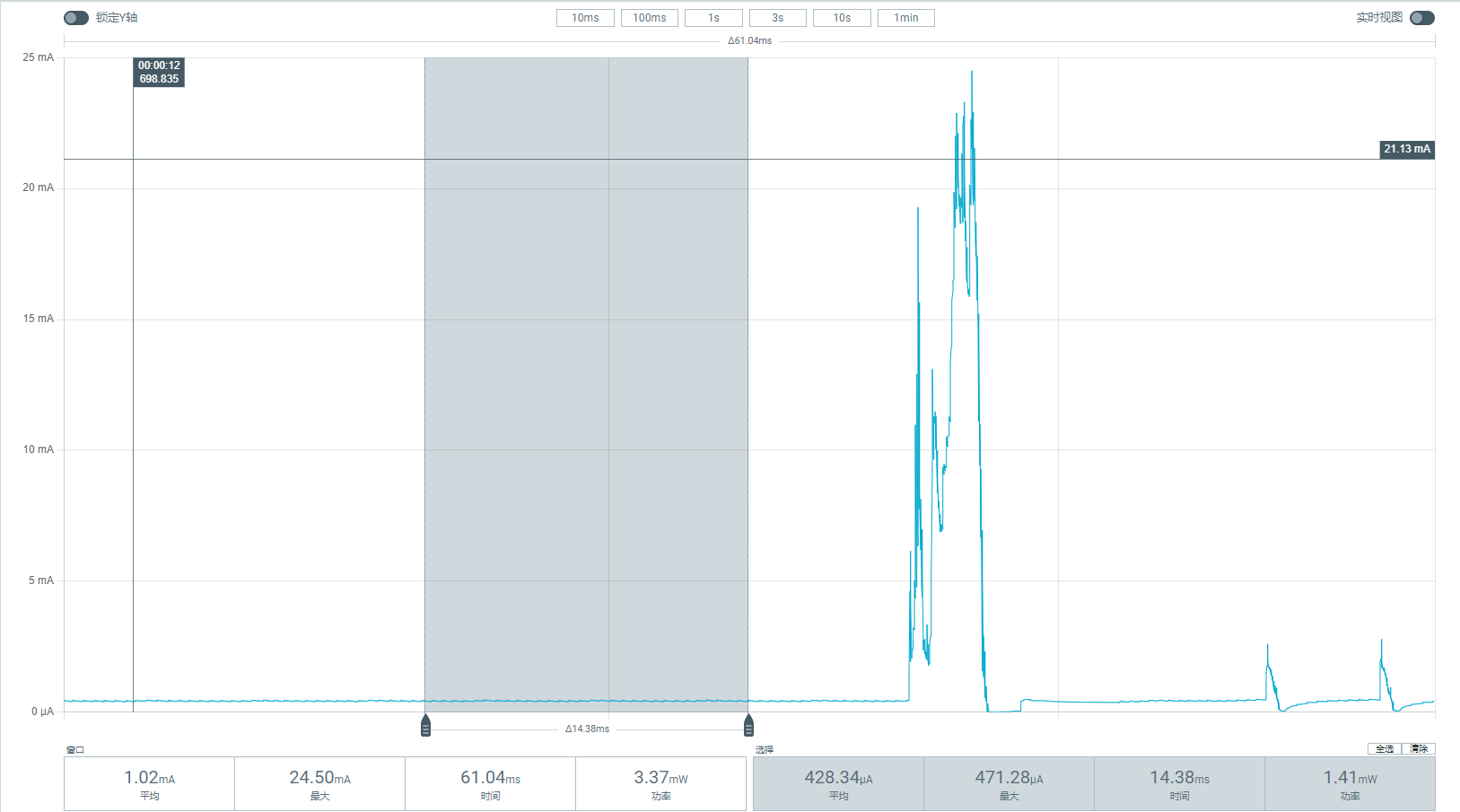

The average sleep current is 428.3uA, and the peak wakeup current is over 20mA. The resulting current waveform when waking up from sleep by GPIO is shown in the following figure.

../_images/gpio_wakeup_current.png

Wi-Fi Wakeup Test

Test Environment and Tools Preparation

  1. Hardware: The target development board, USB Type-C cable, testing computer

  2. Serial debugging tool: Used to observe the running status of the board and to send test commands

  3. Measuring equipment: Current source (or voltage source) and the corresponding host software; a digital multimeter can also be used.

Test Procedure

  1. In amebaxxx_project directory, input ./menuconfig.py to open the menu and enable Wi-Fi options.

  2. Connect the positive terminal of a voltage source (must output 3.3V) to the VDD33_S pin, and the negative to the GND pin. Then open the voltage source host software and set the source output to 3.3V.

  3. Connect the development board and PC using a USB Type-C cable.

  4. Compile and download the firmware with Wi-Fi functionality to the target board.

  5. Open the serial debug software, select the COM port of the development board, and briefly press chip en.

  6. Open the voltage source host software and view the current waveform.

  7. After log output is finished, enter the command AT+WLCONN=ssid,<WiFi ssid>,pw,<password> to connect to Wi-Fi, where WiFi ssid and password should be replaced with the available Wi-Fi and its password (do not include the angle brackets).

  8. If connection is successful, assoc succes will be printed in the serial terminal, then enter AT+TICKPS=R to observe the current waveform. If the connection fails, check if the hotspot exists and whether the antenna is properly connected on the dev board.

After entering the command AT+TICKPS=R, the CPU enters sleep, and wakes up approximately every 102ms to handle Beacon, before going back to sleep. The log when periodically waking up from Beacon sending/receiving is shown below:

15:54:13.711 [WLAN-A] start auth to 50:2b:73:c3:6f:71
15:54:13.737 [WLAN-A] auth success, start assoc
15:54:13.761 [WLAN-A] assoc success (2)
15:54:13.801 [WLAN-A] set pairwise key 4 (WEP40-1 WEP104-5 TKIP-2 AES-4 GCMP-15)
15:54:14.797 [WLAN-A] set group key 4 1
15:54:14.798 [WLAN-I] set cam: gtk alg 4 0
15:54:14.813 [$]wifi connected
15:54:16.574 [$]wifi got ip:"192.168.0.103"
15:54:16.574 [WLAN-I] AP consume heap 11896
15:54:16.574 [WLAN-I] Available heap after wifi init 4409120
15:55:10.086 AT+TICKPS=R
15:55:10.086
15:55:10.086 [MEM] After do cmd, available heap 4409632
15:55:10.086
15:55:10.086
15:55:10.086 #
15:55:10.086 APPG
15:55:10.086 NPPG
15:55:10.114 NPPW
15:55:10.114 NPPG
15:55:10.210 NPPW
15:55:10.223 NPPG
15:55:10.238 NPPW

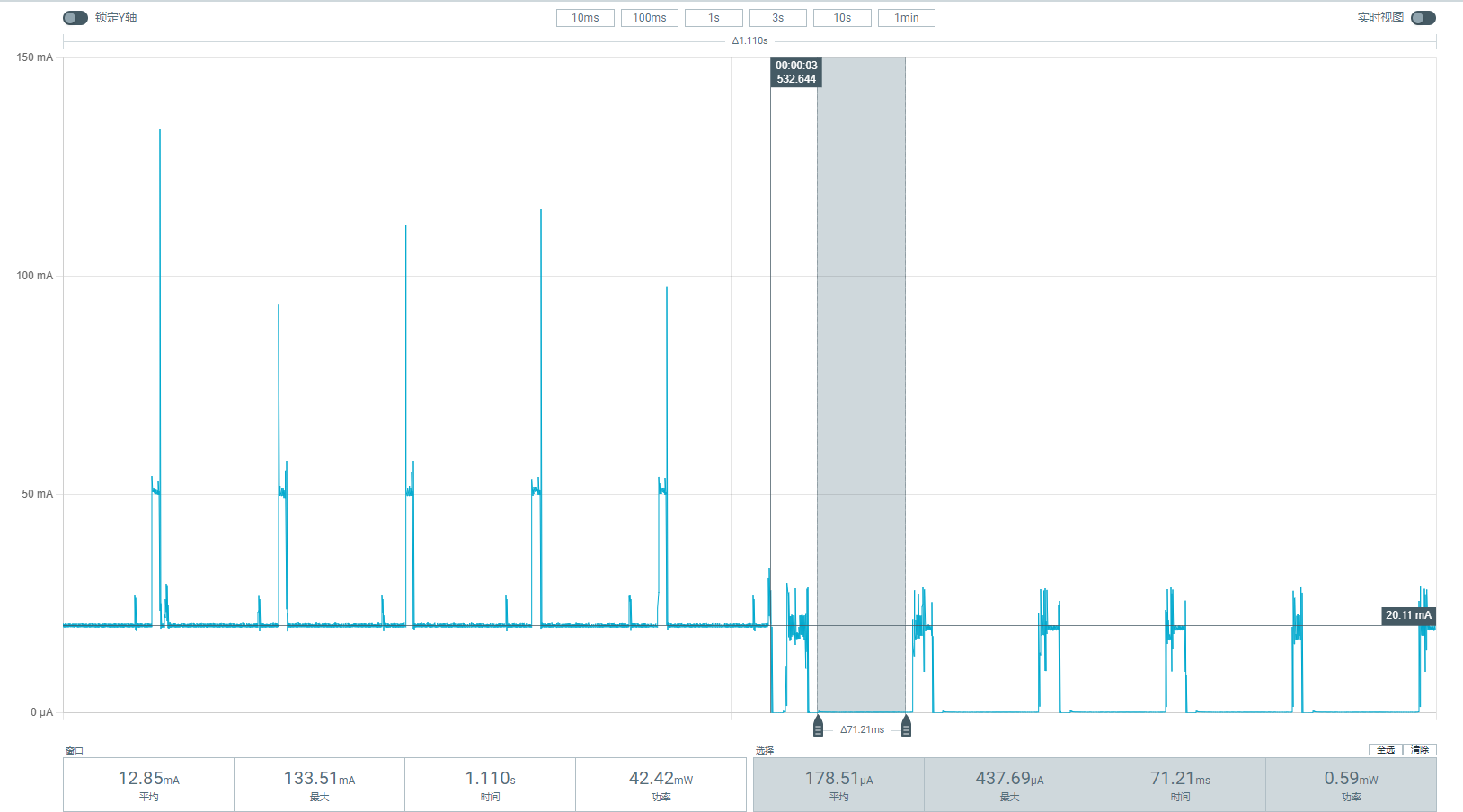

The current waveform of periodic Wi-Fi wakeups in sleep mode is shown in the following figure. On the left, the average current is over 20mA, where the CPU is still active. On the right, the average sleep current is 178.5uA, and during beacon sending/receiving, the current approaches 20mA.

../_images/wifi_wakeup_current.png
