Introduction

The chip supports Motorola Serial Peripheral Interface (SPI) – A four-wire, full-duplex serial protocol.

Features

• Supports Motorola SPI Serial interface operation

• Master or slave operation mode

• Provides two high-speed SPI ports: configured as master or slave with max. baud rate 50Mbps

• DMA interface for DMA transfer

• Independent masking of interrupts

• The Transmit and Receive FIFO buffers are 64 words depth. The FIFO width is fixed at 16 bits.

• Hardware/Software slave-select

  • Dedicated hardware slave-select lines

  • Software control to select target the serial-slave device

• Programmable features

  • Clock bit-rate – Dynamic control of the serial bit rate of the data transfer; only when configured in master mode

  • Data frame size (4 to 16 bits) – Frame size of each data transfer under the control of the programmer.

  • Configurable clock polarity and phase

  • Programmable delay on the sample time of the received serial data bit (rxd), when configured in master mode

• Transfer mode

  • Transmit and receive

  • Transmit only

  • Receive only

• Operation mode

  • Polling mode

  • Interrupt mode

  • DMA mode

Block Diagram

The following figure shows the following functional groupings of the main interfaces to the SPI block.

• APB Interface: A bus interface for low bandwidth control access. The processor accesses data, control, and status information on the SPI device through this APB interface.

• Register Block: Contains configuration registers and is the interface with software.

• DMA Interface: Generates the handshaking signals to the central DMA controller in order to automatically transfer the data without CPU intervention. The hardware handshake interface acts an important role in controlling data flow so that data overflow and underflow can be avoided.

• Transmit FIFO Control/Receive FIFO Control: Records the level of the FIFO.

• Transmit FIFO Memory/Receive FIFO Memory: Stores data in the FIFO or removes data out of the FIFO. The depth of each FIFO is 64 bytes.

• FSM Control: Controls the state change of the SPI device.

• Shift Control Logic: Shifts out data out of the FIFO bit by bit.

• Interrupt Logic: Generates the raw interrupt and interrupt flags, allowing them to be set and to be cleared.

• Clock Pre-scale: Generates clk from pclk. The sclk is configurable by setting the BAUDR register.

Functional Description

This section describes the functional operation of the SPI.

The SPI is a configurable, synthesizable, and programmable component that is a full-duplex master or slave-synchronous serial interface. It can be configured in one of two modes of operations: as a serial master or a serial slave. The SPI can connect to any serial-master or serial-slave peripheral device using Motorola Serial Peripheral Interface (SPI).

Introduction

In order to connect to a serial-master or serial-slave peripheral device for the SPI, the peripheral must have Motorola Serial Peripheral Interface (SPI) – A four-wire, full-duplex serial protocol from Motorola.

The serial protocols supported by the SPI allow for serial slaves to be selected or addressed.

• Single slave: connecting master's Slave Select pin to slave's Slave Select pin.

• Multiple slaves: As the SPI master has only a single slave select output (determined by SPI hardware design), users should use GPIOs to control multiple SPI salves. Only one slave should be selected at any time.

Motorola Serial Peripheral Interface (SPI)

There are four possible combinations for the serial clock phase and clock polarity. The clock phase (SCPH) determines whether the serial transfer begins with the falling edge of the slave select signal or the first edge of the serial clock. The clock polarity (SCPOL) configuration parameter determines whether the inactive state of the serial clock is high or low. To transmit data, both SPI peripherals must have identical serial clock phase (SCPH) and clock polarity (SCPOL) values.

When the configuration parameter SCPH = 0, data transmission begins on the falling edge of the slave select signal. The first data bit is captured by the master and slave peripherals on the first edge of the serial clock; therefore, valid data must be present on the MOSI and MISO lines prior to the first serial clock edge. The following figure shows a timing diagram for a single SPI data transfer with SCPH = 0. The serial clock is shown for configuration parameters SCPOL = 0 and SCPOL = 1.

The signals are illustrated in the timing diagrams.

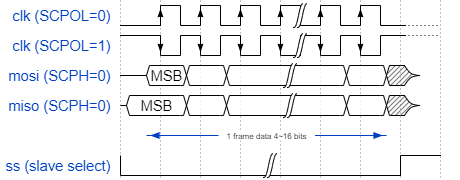

SPI serial format (SCPH = 0)

As data transmission starts on the falling edge of the slave select signal when SCPH = 0, whether the slave select signal of SPI master should toggle or not before the next data frame during continuous data transfer can be configured through SS_T in CTRLR0 register. The SPI slave can communicate with serial-master no matter that the slave select signal from master is toggling or not during continuous data transfer. The timing diagram of SS toggling is illustrated and the timing diagram of SS not-toggling is illustrated below. SS toggling function is used to compatible with different SPI devices.

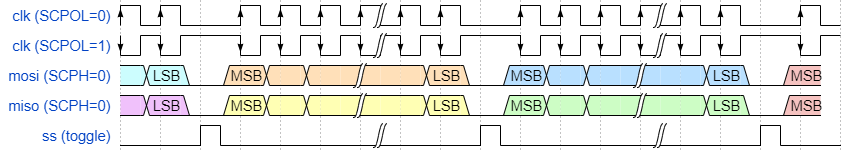

SPI serial format continuous transfers (SCPH = 0 and SS toggling)

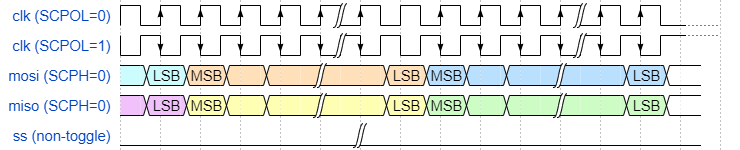

SPI serial format continuous transfers (SCPH = 0 and SS not-toggling)

When the configuration parameter SCPH = 1, both master and slave peripherals begin transmitting data on the first serial clock edge after the slave select line is activated. The first data bit is captured on the second (trailing) serial clock edge. Data are propagated by the master and slave peripherals on the leading edge of the serial clock. During continuous data frame transfers, the slave select line may be held active-low until the last bit of the last frame has been captured. The following figure shows the timing diagram for the SPI format when the configuration parameter SCPH = 1.

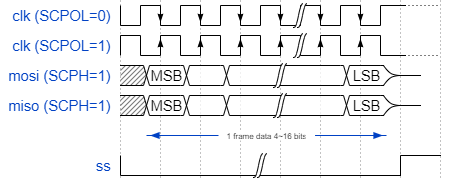

SPI serial format (SCPH = 1)

Continuous data frames are transferred in the same way as single frames, with the MSB of the next frame following directly after the LSB of the current frame. The slave select signal is held active for the duration of the transfer. The following figure shows the timing diagram for continuous SPI transfers when the configuration parameter SCPH = 1.

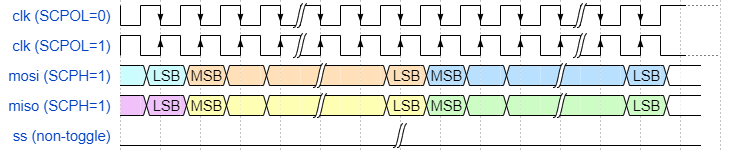

SPI serial format continuous transfers (SCPH = 1 and SS not toggling)

SPI serial format continuous transfers (SCPH = 1 and SS toggling)

Clock Ratios

When SPI is configured as a master device, the maximum frequency of the bit-rate clock (sclk_out) is one-half the frequency of ssi_clk. This allows the shift control logic to capture data on one clock edge of sclk_out, and propagate data on the opposite edge; as illustrated below. The sclk_out line toggles only when an active transfer is in progress. At all other times, it is held in an inactive state, as defined by the serial protocol under which it operates.

The frequency of sclk_out can be derived from the following equation:

F_{sclk_out}= F_{ssi_clk}/SCKDV

SCKDV is a bit field in the programmable register BAUDR, holding any even value in the range 0 to 65,534. If SCKDV is 0, then sclk_out is disabled.

Maximum sclk_out/ssi_clk Ratio

The chip supports high-speed SPI slave. When SPI is configured as a slave device, the maximum frequency of the bit-rate clock (sclk_in) provided by serial master can reach up to one-half the frequency of ssi_clk.

A summary of the frequency ratio restrictions between bit-rate clock (sclk_out/sclk_in) and SPI peripheral clock (ssi_clk) are described as:

• Master: F_{ssi_clk} >= 2 × (maximum F_{sclk_out})

• Slave: F_{ssi_clk} >= 2 × (maximum F_{sclk_out})

The F_{ssi_clk} of SPI0 is 100MHz, the same as the F_{ssi_clk} of SPI1.

Transmit and Receive FIFO Buffers

The depth of both transmit and receive FIFO buffers is 64. The width is fixed at 16 bits due to the serial specifications, which state that a serial transfer (data frame) can be 4 to 16 bits in length. Each data entry in the FIFO buffers contains a single data frame.

Note

The transmit and receive FIFO buffers are cleared when the SPI is disabled (SSI_EN = 0) or when it is reset.

The transmit FIFO is loaded by APB write commands to the SPI data register (DR). Data are popped (removed) from the transmit FIFO by the shift control logic into the transmit shift register. The transmit FIFO generates a FIFO empty interrupt request (ssi_txe_intr) when the number of entries in the FIFO is less than or equal to the FIFO threshold value. The threshold value, set through the programmable register TXFTLR, determines the level of FIFO entries at which an interrupt is generated. The threshold value allows you to provide early indication to the processor that the transmit FIFO is nearly empty. A transmit FIFO overflow interrupt (ssi_txo_intr) is generated if you attempt to write data into an already full transmit FIFO.

Data are popped from the receive FIFO by APB read commands to the SPI data register (DR). The receive FIFO is loaded from the receive shift register by the shift control logic. The receive FIFO generates a FIFO-full interrupt request (ssi_rxf_intr) when the number of entries in the FIFO is greater than or equal to the FIFO threshold value plus 1. The threshold value, set through programmable register RXFTLR, determines the level of FIFO entries at which an interrupt is generated.

The threshold value allows you to provide early indication to the processor that the receive FIFO is nearly full. A receive FIFO overrun interrupt (ssi_rxo_intr) is generated when the receive shift logic attempts to load data into a completely full receive FIFO. However, this newly received data are lost. A receive FIFO underflow interrupt (ssi_rxu_intr) is generated if you attempt to read from an empty receive FIFO. This alerts the processor that the read data are invalid.

SPI Interrupts

The SPI supports combined and individual interrupt requests, each of which can be masked. The combined interrupt request is the ored result of all other SPI interrupts after masking. The system designer has the choice of routing individual interrupt requests or only the combined interrupt request to the Interrupt Controller. The SPI interrupts are described as follows:

• Transmit FIFO Empty Interrupt (ssi_txe_intr) – Set when the transmit FIFO is equal to or below its threshold value and requires service to prevent an under-run. The threshold value, set through a software-programmable register, determines the level of transmit FIFO entries at which an interrupt is generated. This interrupt is cleared by hardware when data are written into the transmit FIFO buffer, bringing it over the threshold level.

• Transmit FIFO Overflow Interrupt (ssi_txo_intr) – Set when an APB access attempts to write into the transmit FIFO after it has been completely filled. When set, data written from the APB is discarded. This interrupt remains set until you read the transmit FIFO overflow interrupt clear register (TXOICR).

• Receive FIFO Underflow Interrupt (ssi_rxu_intr) – Set when an APB access attempts to read from the receive FIFO when it is empty. When set, zeros are read back from the receive FIFO. This interrupt remains set until you read the receive FIFO underflow interrupt clear register (RXUICR).

• Receive FIFO Overflow Interrupt (ssi_rxo_intr) – Set when the receive logic attempts to place data into the receive FIFO after it has been completely filled. When set, the newly received data are discarded. This interrupt remains set until you read the receive FIFO overflow interrupt clear register (RXOICR).

• Receive FIFO Full Interrupt (ssi_rxf_intr) – Set when the receive FIFO is equal to or above its threshold value plus 1 and requires service to prevent an overflow. The threshold value, set through a software-programmable register, determines the level of receive FIFO entries at which an interrupt is generated. This interrupt is cleared by hardware when data are read from the receive FIFO buffer, bringing it below the threshold level.

• Frame Alignment Error Interrupt (ssi_fae_intr) – Present only if the SPI is configured as a serial-slave device. The interrupt is set when the received data frame length is not matching the DFS (Data Frame Size) setting in CTRLR0. This interrupt remains set until you read the Frame Alignment Error Interrupt Clear Register (MSTICR_FAEICR).

• Multi-Master Contention Interrupt (ssi_mst_intr) – Unable to use on this chip.

• Transmit FIFO under Flow Interrupt (ssi_txu_intr) – Present only if the SPI is configured as a serial-slave device. The interrupt is set when transmit logic attempts to read from transmit FIFO when it is empty. When set, data sent from slave device is invalid. This interrupt remains set until you read the transmit FIFO underflow interrupt clear register (TXUICR).

• SS_N Rising Edge Detect Interrupt (ssi_ssr_intr) – Present only if the SPI is configured as a serial-slave device. The interrupt is set when SS_N Rising Edge is detected. This interrupt remains set until you read the SS_N Rising Edge Detect Interrupt Clear Register (SSRICR).

SPI Master/Slave Role Set

There are two different sets of circuits when the chip works as SPI Master or SPI Slave, so users need to set the SPI role before initializing the device, the relevant register is described below.

• Name: REG_LSYS_PLAT_CTRL

• Size: 32 bits

• Base Address: 0x4100C000

• Address offset: 0x230

• Read/write access: read/write

This register is valid only when the SPI is configured as serial-master.

Bit	Name	Access	Reset	Description
27	SPI1_MST	R/W	0x0	1: SPI1 used as master 0: SPI1 used as slaver
26	SPI0_MST	R/W	0x0	1: SPI0 used as master 0: SPI0 used as slaver

Transfer Modes

When transferring data on the serial bus, the SPI master can operate in transmit and receive mode, transmit only mode or receive only mode as following. The transfer mode (TMOD) is set by writing to control register 0 (CTRLR0).

When transferring data on the serial bus, the SPI slave can only operate in transmit and receive mode. That is, TMOD field in CTRLR0 register is invalid for SPI slave. If you do not want this device to respond with data, slave output can be disabled through SLV_OE bit in CTRLR0.

Transmit and Receive

When TMOD = 2'b00, both transmit and receive logic are valid. Transmit data are popped from the transmit FIFO and sent through the MOSI line to the target device, which replies with data on the MISO line. The received data from the target device is moved from the receive shift register into the receive FIFO at the end of each data frame.

Transmit Only

When TMOD = 2'b01, the receive data are invalid and should not be stored in the receive FIFO. Transmit data are popped from the transmit FIFO and sent through the MOSI line to the target device, which replies with data on the MISO line. At the end of the data frame, the receive shift register does not load its newly received data into the receive FIFO. The data in the receive shift register is overwritten by the next transfer. You should mask interrupts originating from the receive logic when this mode is entered.

Receive Only

When TMOD = 2'b10, the transmit data are invalid. The MOSI output remains at a constant logic level during the transmission. The received data from the target device is moved from the receive shift register into the receive FIFO at the end of each data frame. You should mask interrupts originating from the transmit logic when this mode is entered.

Operation Modes

The SPI can be configured in the fundamental modes of operation discussed in this section.

Serial-Master Mode

This mode enables serial communication with serial-slave peripheral devices by software. When configured as a serial-master device, the SPI initiates and controls all serial transfers. This figure shows an example of the SPI configured as a serial master with all other devices on the serial bus controlled by GPIO as slave select signal.

The serial bit-rate clock, generated and controlled by the SPI master, is driven out on the sclk_out line. When the SPI is disabled (SSI_EN = 0), no serial transfers can occur and sclk_out is held in an inactive state.

RXD Sample Delay

The slave uses the clk signal from the master as a strobe in order to drive MOSI/MISO signal data onto the serial bus. As there are round trip routing delays on clk signal from master, slave drive data output may delay at the same time as seen by the master, which has moved away from the normal sampling time. When the SPI is configured as a master, additional logic can be included in the design in order to delay the default sample time of the MISO signal. This additional logic can help to increase the maximum achievable frequency on the serial bus.

The following figure shows an example of how a routing delay on the MOSI signal can result in an incorrect MISO value at the default time when the master samples the port. Where, blue arrows indicate routing delay between master and slave devices; red line indicates sampling delay within slave from receiving clk to drive data out on MISO line.

Effects of round trip routing delays on clk signal

When the RXD Sample Delay logic is included, user can dynamically program a delay value in order to move the sampling time of the rxd signal equal to a number of pclk cycles from the default.

The sample delay logic has a resolution of one pclk cycle. Software can “train” the serial bus by coding a loop that continually reads from the slave and increments the master's RXD Sample Delay value until the correct data is received by the master.

Note

The maximum number of ssi_clk cycles that can be used to delay the sampling of the rxd input is 4. If programmed delay value exceeds the maximum number, a zero (0) delay will be applied to the rxd sample.

Data Transfers

Data transfers are started by the serial-master device. When the SPI is enabled (SSI_EN=1), at least one valid data entry is present in the transmit FIFO and a serial-slave device is selected. When actively transferring data, the busy flag (BUSY) in the status register (SR) is set. You must wait until the busy flag is cleared before attempting a new serial transfer.

CS Force Control

RTL8721DxRTL8720ERTL8726ERTL8713ERTL8730ERTL8721F

Not support.

Master SPI Serial Transfers

When the transfer mode is “transmit and receive” or “transmit only” (TMOD = 2'b00 or TMOD = 2'b01, respectively), transfers are terminated by the shift control logic when the transmit FIFO is empty. For continuous data transfers, you must ensure that the transmit FIFO buffer does not become empty before all the data have been transmitted. The transmit FIFO threshold level (TXFTLR) can be used to early interrupt (ssi_txe_intr) the processor indicating that the transmit FIFO buffer is nearly empty.

When a DMA is used for APB accesses, the transmit data level (DMATDLR) can be used to early request (dma_tx_req) the DMA Controller, indicating that the transmit FIFO is nearly empty. The FIFO can then be refilled with data to continue the serial transfer. The user may also write a block of data (at least two FIFO entries) into the transmit FIFO before enabling a serial slave. This ensures that serial transmission does not begin until the number of data-frames that make up the continuous transfer are present in the transmit FIFO.

When the transfer mode is “receive only” (TMOD = 2'b10), a serial transfer is started by writing one “dummy” data word into the transmit FIFO when a serial slave is selected. The MOSI output from the SPI is held at a constant logic level for the duration of the serial transfer. The transmit FIFO is popped only once at the beginning and may remain empty for the duration of the serial transfer. The end of the serial transfer is controlled by the ‘number of data frames’ (NDF) field in control register 1 (CTRLR1).

If, for example, you want to receive 24 data frames from a serial-slave peripheral, you should program the NDF field with the value 23; the receive logic terminates the serial transfer when the number of frames received is equal to the NDF value + 1. This transfer mode increases the bandwidth of the APB bus as the transmit FIFO never needs to be serviced during the transfer. The receive FIFO buffer should be read each time the receive FIFO generates a FIFO full interrupt request to prevent an overflow.

The receive FIFO threshold level (RXFTLR) can be used to give early indication that the receive FIFO is nearly full. When a DMA is used for APB accesses, the received data level (DMARDLR) can be used to early request (dma_rx_req) the DMA Controller, indicating that the receive FIFO is nearly full.

A typical software flow for completing an SPI serial transfer from the SPI serial master is outlined as follows:

1. If the SPI is enabled, disable it by writing 0 to the SSI Enable register (SSIENR).

2. Set up the SPI control registers for the transfer; these registers can be set in any order.

   • Write Control Register 0 (CTRLR0). For SPI transfers, the serial clock polarity and serial clock phase parameters must be set identical to target slave device.

   • If the transfer mode is receive-only, write Control Register 1 (CTRLR1) with the number of frames in the transfer minus 1; for example, if you want to receive four data frames, write this register with 3.

   • Write the Baud Rate Select Register (BAUDR) to set the baud rate for the transfer.

   • Write the Transmit and Receive FIFO Threshold Level registers (TXFTLR and RXFTLR) respectively to set FIFO threshold levels.

   • Write the IMR register to set up interrupt masks.

   • The Slave Enable Register (SER) can be written here to enable the target slave for selection. If a slave is enabled here, the transfer begins as soon as one valid data entry is present in the transmit FIFO. If no slaves are enabled prior to writing to the Data Register (DR), the transfer does not begin until a slave is enabled.

3. Enable the SPI by writing 1 to the SSIENR register.

4. Write data for transmission to the target slave into the transmit FIFO (write DR).

   If no slaves were enabled in the SER register at this point, enable it now to begin the transfer.

5. Poll the BUSY status to wait for the completion of the transfer. The BUSY status cannot be polled immediately.

   If a transmit FIFO empty interrupt request is made, write the transmit FIFO (write DR). If a receive FIFO full interrupt request is made, read the receive FIFO (read DR).

6. The transfer is stopped by the shift control logic when the transmit FIFO is empty. If the transfer mode is receive only (TMOD = 2'b10), the transfer is stopped by the shift control logic when the specified number of frames have been received. When the transfer is done, the BUSY status is reset to 0.

7. If the transfer mode is not transmitted only (TMOD != 01), read the receive FIFO until it is empty.

8. Disable the SPI by writing 0 to SSIENR.

Serial-Slave Mode

SPI slave enables serial communication with master peripheral devices. When the SPI is configured as a slave device, all serial transfers are initiated and controlled by the serial bus master.

The SPI slave can only operate in transmit and receive mode. That is, TMOD field in CTRLR0 register is invalid for SPI slave. If you do not want this device to respond with data, slave output can be disabled through SLV_OE bit in CTRLR0.

When the SPI serial slave is selected during configuration, it enables its MISO data onto the serial bus. All data transfers to and from the serial slave are regulated on the serial clock line (sclk_in), driven from the serial-master device. Data are propagated from the serial slave on one edge of the serial clock line and sampled on the opposite edge.

When the SPI serial slave is not selected, it must not interfere with data transfers between the serial-master and other serial-slave devices. When the serial slave is not selected, its MISO output is buffered, resulting in a high impedance drive onto the serial master MISO line.

The serial clock that regulates the data transfer is generated by the serial-master device and input to the SPI slave on sclk_in. The slave remains in an idle state until selected by the bus master. When not actively transmitting data, the slave must hold its MISO line in a high impedance state to avoid interference with serial transfers to other slave devices. The slave continues to transfer data to and from the master device as long as it is selected.

Slave SPI Serial Transfers

If the SPI slave transmits data to the master, you must ensure that data exists in the transmit FIFO before a transfer is initiated by the serial-master device. If the master initiates a transfer to the SPI slave when no data exists in the transmit FIFO, an error flag (TXE) is set in the SPI status register, and the previously transmitted data frame is resent on MISO. For continuous data transfers, you must ensure that the transmit FIFO buffer does not become empty before all the data have been transmitted. The transmit FIFO threshold level register (TXFTLR) can be used to early interrupt (ssi_txe_intr) the processor, indicating that the transmit FIFO buffer is nearly empty. When a DMA Controller is used for APB accesses, the DMA transmit data level register (DMATDLR) can be used to early request (dma_tx_req) the DMA Controller, indicating that the transmit FIFO is nearly empty. The FIFO can then be refilled with data to continue the serial transfer.

The receive FIFO buffer should be read each time the receive FIFO generates a FIFO full interrupt request to prevent an overflow. The receive FIFO threshold level register (RXFTLR) can be used to give early indication that the receive FIFO is nearly full. When a DMA Controller is used for APB accesses, the DMA receive data level register (DMARDLR) can be used to early request (dma_rx_req) the DMA controller, indicating that the receive FIFO is nearly full.

A typical software flow for completing a continuous serial transfer from a serial master to the SPI slave is described as follows:

1. If the SPI slave is enabled, disable it by writing 0 to the SSI Enable register (SSIENR).

   1. Set up the SPI control registers for the transfer. These registers can be set in any order.

   2. Write CTRLR0 (for SPI transfers SCPH and SCPOL must be set identical to the master device).

   3. Write TXFTLR and RXFTLR to set FIFO threshold levels.

   4. Write the IMR register to set up interrupt masks.

2. Enable the SPI slave by writing 1 to SSIENR.

3. Write data to the data register (DR)

4. The SPI slave is now ready for the serial transfer. The transfer begins when the SPI slave is selected by a serial-master device.

5. When the transfer is underway, the BUSY status can be polled to return the transfer status. If a transmit FIFO empty interrupt request is made, write the transmit FIFO (write DR). If a receive FIFO full interrupt request is made, read the receive FIFO (read DR).

6. The transfer ends when the serial master removes the select input to the SPI slave. When the transfer is completed, the BUSY status is reset to 0.

7. Disable the SPI slave by writing 0 to SSIENR.

DMA Controller Interface

The SPI has optional built-in DMA capability which can be selected at configuration time; it has a handshaking interface to a DMA Controller to request and control transfers. The APB bus is used to perform the data transfer to or from the DMA.

The SPI uses two DMA channels, one for the transmit data and one for the received data. The SPI has these DMA registers:

• DMACR: Control register to enable DMA operation.

• DMATDLR: Register to set the transmit FIFO level at which a DMA request is made.

• DMARDLR: Register to set the receive FIFO level at which a DMA request is made.

To enable the DMA Controller interface on the SPI, you must write the DMA Control Register (DMACR). Writing a '1' into the TDMAE bit field of DMACR enables the SPI transmit handshaking interface. Writing a '1' into the RDMAE bit field of DMACR enables the SPI receive handshaking interface.

Transmit Watermark Level and Transmit FIFO Underflow

During SPI serial transfers, transmit FIFO requests are made to the DMA Controller whenever the number of entries in the transmit FIFO is less than or equal to the DMA Transmit Data Level Register (DMATDLR) value; this is known as the watermark level. The DMA Controller responds by writing a burst of data to the transmit FIFO buffer.

Data should be fetched from the DMA often enough for the transmit FIFO to perform serial transfers continuously; that is, when the FIFO begins to empty another DMA request should be triggered. Otherwise, the FIFO will run out of data (underflow). To prevent this condition, the user must set the watermark level correctly.

Receive Watermark Level and Receive FIFO Overflow

During SPI serial transfers, receive FIFO requests are made to the DMA Controller whenever the number of entries in the receive FIFO is at or above the DMA Receive Data Level Register; that is, DMARDLR+1. This is known as the watermark level. The DMA Controller responds by fetching a burst of data from the receive FIFO buffer.

Data should be fetched by the DMA often enough for the receive FIFO to accept serial transfers continuously; that is, when the FIFO begins to fill, another DMA transfer is requested. Otherwise, the FIFO will fill with data (overflow). To prevent this condition, the user must correctly set the watermark level.

Registers

This section describes the programmable registers of the SPI. The following table provides the details of the SPI memory map. All registers in the SPI are addressed at 32-bit boundaries to remain consistent with the AHB bus. Where the physical size of any register is less than 32-bit wide, the upper unused bits of the 32-bit boundary are reserved. Writing to these bits has no effect; reading from these bits returns 0.

RTL8721DxRTL8720ERTL8726ERTL8713ERTL8730ERTL8721F

The base addresses of SPI are:

• SPI0: 0x40124000

• SPI1: 0x40125000

Name	Address offset	Access	Description
REG_CTRLR0	000h	R/W	This register controls the serial data transfer. It is impossible to write to this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR register.
REG_CTRLR1	004h	R/W	This register exists only when the SPI is configured as a master device. When the SPI is configured as a serial slave, writing to this location has no effect; reading from this location returns 0. Con trol register 1 controls the end of serial transfers when in receive-only mode. It is impossible to write to this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SS IENR register.
REG_SSIENR	008h	R/W	This register enables and disables the SPI.
REG_SER	010h	R/W	This register is valid only when the SPI is configured as a master device. When the SPI is configure d as a serial slave, writing to this location has no effect; reading from this location returns 0. Y ou cannot write to this register when SPI is busy.
REG_BAUDR	014h	R/W	This register is valid only when the SPI is configured as a master device. When the SPI is configure d as a serial slave, writing to this location has no effect; reading from this location returns 0. T he register derives the frequency of the serial clock that regulates the data transfer. The 16-bit field in this register defines the ssi_clk divider value. It is impossible to write to this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR register.
REG_TXFTLR	018h	R/W	This register controls the threshold value for the transmit FIFO memory. It is impossible to write t o this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR re gister.
REG_RXFTLR	01Ch	R/W	This register controls the threshold value for the receive FIFO memory. It is impossible to write to this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR regi ster.
REG_TXFLR	020h	R	This register contains the number of valid data entries in the transmit FIFO memory.
REG_RXFLR	024h	R	This register contains the number of valid data entries in the receive FIFO memory. This register ca n be read at any time.
REG_SR	028h	R	This is a read-only register used to indicate the current transfer status, FIFO status, and any tra nsmission/reception errors that may have occurred. The status register may be read at any time. None of the bits in this register request an interrupt.
REG_IMR	02Ch	R/W	This read/write register masks or enables all interrupts generated by the SPI.
REG_ISR	030h	R	This register reports the status of the SPI interrupts after they have been masked.
REG_RISR	034h	R	This read-only register reports the status of the SPI interrupts prior to masking.
REG_TXOICR	038h	R
REG_RXOICR	03Ch	R
REG_RXUICR	040h	R
REG_MSTICR_FAEICR	044h	R	Serial-master : MSTICR is not used because ss_in_n is tie 1 for Motorola-SPI, ssi_mst_intr is not used.
REG_ICR	048h	R
REG_DMACR	04Ch	R/W	This register is only valid when SPI is configured with a set of DMA Controller interface signals.
REG_DMATDLR	050h	R/W	This register is only valid when the SPI is configured with a set of DMA interface signals.
REG_DMARDLR	054h	R/W	This register is only valid when SPI is configured with a set of DMA interface signals.
REG_TXUICR	058h	R	This register is present only if SPI is configured as serial-slave.
REG_SSRICR	05Ch	R	This register is present only if SPI is configured as serial-slave.
REG_DR0	060h	R/W
REG_DR1	064h	R/W
REG_DR2	068h	R/W
REG_DR3	06Ch	R/W
REG_DR4	070h	R/W
REG_DR5	074h	R/W
REG_DR6	078h	R/W
REG_DR7	07Ch	R/W
REG_DR8	080h	R/W
REG_DR9	084h	R/W
REG_DR10	088h	R/W
REG_DR11	08Ch	R/W
REG_DR12	090h	R/W
REG_DR13	094h	R/W
REG_DR14	098h	R/W
REG_DR15	09Ch	R/W
REG_DR16	0A0h	R/W
REG_DR17	0A4h	R/W
REG_DR18	0A8h	R/W
REG_DR19	0ACh	R/W
REG_DR20	0B0h	R/W
REG_DR21	0B4h	R/W
REG_DR23	0BCh	R/W
REG_DR24	0C0h	R/W
REG_DR25	0C4h	R/W
REG_DR26	0C8h	R/W
REG_DR27	0CCh	R/W
REG_DR28	0D0h	R/W
REG_DR29	0D4h	R/W
REG_DR30	0D8h	R/W
REG_DR31	0DCh	R/W
REG_DR32	0E0h	R/W
REG_DR33	0E4h	R/W
REG_DR34	0E8h	R/W
REG_DR35	0ECh	R/W
REG_RX_SAMPLE_DLY	0F0h	R/W	This register is valid only when the SPI is configured as serial-master. This register controls the number of ssi_clk cycles that are delayed—from the default sample time—be fore the actual sample of the rxd input signal occurs. It is impossible to write to this register wh en the SPI is enabled; the SPI is enabled and disabled by writing to the SSIENR register. Note If this register is programmed with a value that exceeds the depth of the internal shift register s (SSI_RX_DLY_SR_DEPTH), a zero (0) delay will be applied to the rxd sample.
REG_RSVD_0	0F4h	R
REG_RSVD_1	0F8h	R
REG_RSVD_2	0FCh	R
REG_SPI_DUMMY	100h	R

REG_CTRLR0

• Name : Control Register 0

• Size : 32

• Address offset : 000h

• Read/write access : R/W

This register controls the serial data transfer. It is impossible to write to this register when the

SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR register.

Bit	Symbol	Access	Reset	Description
31	SS_T	R/W	0	When SCPH is 0 (Relevant only when the SPI is configured as a serial-master device) 0: ss_n_out doesn’t toggle between successive frames 1: ss_n_out does toggle between successive frames
30:25	RSVD	R	-	Reserved
24	RXBITSWAP	R/W	0	0: Order of receive bit doesn’t swap 1: Order of receive bit does swap
23	RXBYTESWAP	R/W	0	0: Order of receive byte doesn’t swap 1: Order of receive byte does swap
22	TXBITSWAP	R/W	0	0: Order of transmit bit doesn’t swap 1: Order of transmit bit does swap
21	TXBYTESWAP	R/W	0	0: Order of transmit byte doesn’t swap 1: Order of transmit byte does swap
20:16	RSVD	R	-	Reserved
15	CSF_EN	R/W	0	CS Force Control Enable. Relevant only when the SPI is confi gured as a serial-master device. This bit field enable SPI to force CS signal keep low until the amount of data bits (D FS * NDF) had been sent/received. SPI master will force the CS signal low even when the TX FIFO is empty during transmis sion. 0: CS Force Control is disabled. 1: CS Force Control is enabled.
14:11	RSVD	R	-	Reserved
10	SLV_OE	R/W	0	Slave Output Enable. Relevant only when the SPI is configure d as a serial-slave device. When configured as a serial mas ter, this bit field has no functionality. This bit enables o r disables the setting of the ssi_oe_n output from the SPI s erial slave. When SLV_OE = 1, the ssi_oe_n output can never be active. Wh en the ssi_oe_n output controls the tri-state buffer on the txd output from the slave, a high impedance state is always present on the slave txd output when SLV_OE = 1. This is useful when the master transmits in broadcast mode ( master transmits data to all slave devices). Only one slave may respond with data on the master rxd line. This bit is en abled after reset and must be disabled by software (when bro adcast mode is used), if you do not want this device to resp ond with data. 0: Slave txd is enabled 1: Slave txd is disabled
9:8	TMOD	R/W	00	Transfer Mode. Relevant only when the SPI is configured as a serial-master device. Selects the mode of transfer for seri al communication. This field does not affect the transfer du plicity. Only indicates whether the receive or transmit data are valid. In transmit-only mode, data received from the external devi ce is not valid and is not stored in the receive FIFO memory ; it is overwritten on the next transfer. In receive-only mode, transmitted data are not valid. After the first write to the transmit FIFO, the same word is retra nsmitted for the duration of the transfer. In transmit-and-receive mode, both transmit and receive da ta are valid. The transfer continues until the transmit FIFO is empty. Data received from the external device are stored into the receive FIFO memory, where it can be accessed by th e host processor. 00: Transmit & Receive 01: Transmit Only 10: Receive Only
7	SCPOL	R/W	0	Serial Clock Polarity. Valid when the frame format (FRF) is set to Motorola SPI. Used to select the polarity of the inac tive serial clock, which is held inactive when the SPI maste r is not actively transferring data on the serial bus. 0: Inactive state of serial clock is low 1: Inactive state of serial clock is high
6	SCPH	R/W	0	Serial Clock Phase. Valid when the frame format (FRF) is set to Motorola SPI. The serial clock phase selects the relation ship of the serial clock with the slave select signal. When SCPH = 0, data are captured on the first edge of the se rial clock. When SCPH = 1, the serial clock starts toggling one cycle after the slave select line is activated, and data are captured on the second edge of the serial clock. 0: Serial clock toggles in middle of the first data bit 1: Serial clock toggles at start of the first data bit
5:4	FRF	R/W	00	Frame Format. Selects which serial protocol transfers the da ta. 00: Motorola SPI Other: Reserved
3:0	DFS	R/W	0111	Data Frame Size. Selects the data frame length. When the dat a frame size is programmed to be less than 16 bits, the rece ive data are automatically right-justified by the receive l ogic, with the upper bits of the receive FIFO zero-padded. You must right-justify transmit data before writing into th e transmit FIFO. The transmit logic ignores the upper unused bits when transmitting the data. For the DFS decode, refer t o the following description: 0000/0001/0010: Reserved (undefined operation) 0011: 4-bit serial data transfer 0100: 5-bit serial data transfer 0101: 6-bit serial data transfer 0110: 7-bit serial data transfer 0111: 8-bit serial data transfer 1000: 9-bit serial data transfer 1001: 10-bit serial data transfer 1010: 11-bit serial data transfer 1011: 12-bit serial data transfer 1100: 13-bit serial data transfer 1101: 14-bit serial data transfer 1110: 15-bit serial data transfer 1111: 16-bit serial data transfer

REG_CTRLR1

• Name : Control Register 1

• Size : 32

• Address offset : 004h

• Read/write access : R/W

This register exists only when the SPI is configured as a master device. When the SPI is configured

as a serial slave, writing to this location has no effect; reading from this location returns 0. Con

trol register 1 controls the end of serial transfers when in receive-only mode. It is impossible to

write to this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SS

IENR register.

Bit	Symbol	Access	Reset	Description
31:16	RSVD	R	-	Reserved
15:0	NDF	R/W	0x0	Number of Data Frames. When TMOD = 10 or TMOD = 11, this reg ister field sets the number of data frames to be continuousl y received by the SPI. The SPI continues to receive serial d ata until the number of data frames received is equal to thi s register value plus 1, which enables you to receive up to 64 KB of data in a continuous transfer. When the SPI is configured as a serial slave, the transfer c ontinues for as long as the slave is selected. Therefore, th is register serves no purpose and is not present when the SP I is configured as a serial slave. When CFS_EN is enabled, this bit field will be taken by SPI master to calculate the amount of data bits for all TMOD.

REG_SSIENR

• Name : SSI Enable Register

• Size : 32

• Address offset : 008h

• Read/write access : R/W

This register enables and disables the SPI.

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	SSI_EN	R/W	0	SPI Enable. Enables and disables all SPI operations. When di sabled, all serial transfers are halted immediately. Transmi t and receive FIFO buffers are cleared when the device is di sabled. It is impossible to program some of the SPI control registers when enabled. When disabled, the ssi_sleep output is set (after delay) to inform the system that it is safe to remove the ssi_clk, thus saving power consumption in the sys tem.

REG_SER

• Name : Slave Enable Register

• Size : 32

• Address offset : 010h

• Read/write access : R/W

This register is valid only when the SPI is configured as a master device. When the SPI is configure

d as a serial slave, writing to this location has no effect; reading from this location returns 0. Y

ou cannot write to this register when SPI is busy.

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	SER	R/W	0	Slave Select Enable Flag. When this bit is set (1), the corr esponding slave select line from the master is activated whe n a serial transfer begins. It should be noted that setting or clearing bits in this register have no effect on the corr esponding slave select outputs until a transfer is started. Before beginning a transfer, you should enable the bit in th is register that corresponds to the slave device with which the master wants to communicate. 1: Selected 0: Not selected

REG_BAUDR

• Name : Baud Rate Select

• Size : 32

• Address offset : 014h

• Read/write access : R/W

This register is valid only when the SPI is configured as a master device. When the SPI is configure

d as a serial slave, writing to this location has no effect; reading from this location returns 0. T

he register derives the frequency of the serial clock that regulates the data transfer. The 16-bit

field in this register defines the ssi_clk divider value. It is impossible to write to this register

when the SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR register.

Bit	Symbol	Access	Reset	Description
31:16	RSVD	R	-	Reserved
15:0	SCKDV	R/W	0x0	SPI Clock Divider. The LSB for this field is always set to 0 and is unaffected by a write operation, which ensures an eve n value is held in this register. If the value is 0, the ser ial output clock (sclk_out) is disabled. The frequency of th e sclk_out is derived from the equation: Fsclk_out =Fssi_cl k/SCKDV, where SCKDV is any even value between 2 and 65534.

REG_TXFTLR

• Name : Transmit FIFO Threshold Level

• Size : 32

• Address offset : 018h

• Read/write access : R/W

This register controls the threshold value for the transmit FIFO memory. It is impossible to write t

o this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR re

gister.

Bit	Symbol	Access	Reset	Description
31:6	RSVD	R	-	Reserved
5:0	TFT	R/W	0x0	Transmit FIFO Threshold. Controls the level of entries (or b elow) at which the transmit FIFO controller triggers an inte rrupt. The FIFO depth is 64; this register is sized to the n umber of address bits needed to access the FIFO. If you attempt to set this value greater than or equal to th e depth of the FIFO, this field is not written and retains i ts current value. When the number of transmit FIFO entries i s less than or equal to this value, the transmit FIFO empty interrupt is triggered. For TFT decode, refer to the followi ng description: 000000: ssi_txe_intr is asserted when 0 data entry is pres ent in transmit FIFO. 000001: ssi_txe_intr is asserted when 1 data entry is pres ent in transmit FIFO. 000010: ssi_txe_intr is asserted when 2 data entries are p resent in transmit FIFO. 000011: ssi_txe_intr is asserted when 3 data entries are p resent in transmit FIFO. ... 111100: ssi_txe_intr is asserted when 60 data entries are present in transmit FIFO. 111101: ssi_txe_intr is asserted when 61 data entries are present in transmit FIFO. 111110: ssi_txe_intr is asserted when 62 data entries are present in transmit FIFO. 111111: ssi_txe_intr is asserted when 63 data entries are present in transmit FIFO.

REG_RXFTLR

• Name : Receive FIFO Threshold Level

• Size : 32

• Address offset : 01Ch

• Read/write access : R/W

This register controls the threshold value for the receive FIFO memory. It is impossible to write to

this register when the SPI is enabled. The SPI is enabled and disabled by writing to the SSIENR regi

ster.

Bit	Symbol	Access	Reset	Description
31:6	RSVD	R	-	Reserved
5:0	RFT	R/W	0x0	Receive FIFO Threshold. Controls the level of entries (or ab ove) at which the receive FIFO controller triggers an interr upt. The FIFO depth is configurable in the range 2~64. This register is sized to the number of address bits needed to ac cess the FIFO. If you attempt to set this value greater than the depth of the FIFO, this field is not written and retains its current value. When the number of receive FIFO entries is greater than or e qual to this value + 1, the receive FIFO full interrupt is t riggered. For RFT decode, refer to the following description : 000000: ssi_rxf_intr is asserted when 1 or more data entri es are present in receive FIFO. 000001: ssi_rxf_intr is asserted when 2 or more data entri es are present in receive FIFO. 000010: ssi_rxf_intr is asserted when 3 or more data entri es are present in receive FIFO. 000011: ssi_rxf_intr is asserted when 4 or more data entri es are present in receive FIFO. ... 111110: ssi_rxf_intr is asserted when 61 or more data entr ies are present in receive FIFO. 111101: ssi_rxf_intr is asserted when 62 or more data entr ies are present in receive FIFO. 111110: ssi_rxf_intr is asserted when 63 or more data entr ies are present in receive FIFO. 111111: ssi_rxf_intr is asserted when 64 or more data entr ies are present in receive FIFO.

REG_TXFLR

• Name : Transmit FIFO Level Register

• Size : 32

• Address offset : 020h

• Read/write access : R

This register contains the number of valid data entries in the transmit FIFO memory.

Bit	Symbol	Access	Reset	Description
31:7	RSVD	R	-	Reserved
6:0	TXTFL	R	0x0	Transmit FIFO Level. Contains the number of valid data entri es in the transmit FIFO.

REG_RXFLR

• Name : Receive FIFO Level Register

• Size : 32

• Address offset : 024h

• Read/write access : R

This register contains the number of valid data entries in the receive FIFO memory. This register ca

n be read at any time.

Bit	Symbol	Access	Reset	Description
31:7	RSVD	R	-	Reserved
6:0	RXTFL	R	0x0	Receive FIFO Level. Contains the number of valid data entrie s in the receive FIFO.

REG_SR

• Name : Status Register

• Size : 32

• Address offset : 028h

• Read/write access : R

This is a read-only register used to indicate the current transfer status, FIFO status, and any tra

nsmission/reception errors that may have occurred. The status register may be read at any time. None

of the bits in this register request an interrupt.

Bit	Symbol	Access	Reset	Description
31:7	RSVD	R	-	Reserved
6	DCOL	R	0	Data Collision Error. Relevant only when the SPI is configur ed as a master device. This bit is set if the SPI master is actively transmitting when another master selects this devic e as a slave. This informs the processor that the last data transfer was halted before completion. This bit is cleared w hen read. 0: No error 1: Transmit data collision error
5	TXE	R	0	Transmission Error. Set if the transmit FIFO is empty when a transfer is started. This bit can be set only when the SPI i s configured as a slave device. Data from the previous trans mission is resent on the txd line. This bit is cleared when read. 0: No error 1: Transmission error
4	RFF	R	0	Receive FIFO Full. When the receive FIFO is completely full, this bit is set. When the receive FIFO contains one or more empty location, this bit is cleared. 0: Receive FIFO is not full 1: Receive FIFO is full
3	RFNE	R	0	Receive FIFO Not Empty. Set when the receive FIFO contains o ne or more entries and is cleared when the receive FIFO is e mpty. This bit can be polled by software to completely empty the receive FIFO. 0: Receive FIFO is empty 1: Receive FIFO is not empty
2	TFE	R	1	Transmit FIFO Empty. When the transmit FIFO is completely em pty, this bit is set. When the transmit FIFO contains one or more valid entries, this bit is cleared. This bit field does not request an interrupt. 0: Transmit FIFO is not empty 1: Transmit FIFO is empty
1	TFNF	R	1	Transmit FIFO Not Full. Set when the transmit FIFO contains one or more empty locations, and is cleared when the FIFO is full. 0: Transmit FIFO is full 1: Transmit FIFO is not full
0	BUSY	R	0	SSI Busy Flag. When set, indicates that a serial transfer is in progress; when cleared indicates that the SPI is idle or disabled. 0: SPI is idle or disabled 1: SPI is actively transferring data

REG_IMR

• Name : Interrupt Mask Register

• Size : 32

• Address offset : 02Ch

• Read/write access : R/W

This read/write register masks or enables all interrupts generated by the SPI.

Bit	Symbol	Access	Reset	Description
31:8	RSVD	R	-	Reserved
7	SSRIM	R/W	1	SS_N Rising Edge Detect Interrupt Mask. This bit field is pr esent only if the SPI is configured as a serial-slave devic e. 0: ssi_ssr_intr is masked 1: ssi_ssr_intr is not masked
6	TXUIM	R/W	1	Transmit FIFO Underflow Interrupt Mask. This bit field is pr esent only if the SPI is configured as a serial-slave devic e. 0: ssi_txu_intr is masked 1: ssi_txu_intr is not masked
5	MSTIM_FAEIM	R/W	1	When SPI is configured as serial-master, this bit field is present as Multi-Master Contention Interrupt Mask. 0: ssi_mst_intr interrupt is masked 1: ssi_mst_intr interrupt is not masked When SPI is configured as serial-slave, this bit field is p resent as Frame Alignment Interrupt Mask. 0: ssi_fae_intr interrupt is masked 1: ssi_fae_intr interrupt is not masked
4	RXFIM	R/W	1	Receive FIFO Full Interrupt Mask. 0: ssi_rxf_intr interrupt is masked 1: ssi_rxf_intr interrupt is not masked
3	RXOIM	R/W	1	Receive FIFO Overflow Interrupt Mask. 0: ssi_rxo_intr interrupt is masked 1: ssi_rxo_intr interrupt is not masked
2	RXUIM	R/W	1	Receive FIFO Underflow Interrupt Mask. 0: ssi_rxu_intr interrupt is masked 1: ssi_rxu_intr interrupt is not masked
1	TXOIM	R/W	1	Transmit FIFO Overflow Interrupt Mask. 0: ssi_txo_intr interrupt is masked 1: ssi_txo_intr interrupt is not masked
0	TXEIM	R/W	1	Transmit FIFO Empty Interrupt Mask. 0: ssi_txe_intr interrupt is masked 1: ssi_txe_intr interrupt is not masked

REG_ISR

• Name : Interrupt Status Register

• Size : 32

• Address offset : 030h

• Read/write access : R

This register reports the status of the SPI interrupts after they have been masked.

Bit	Symbol	Access	Reset	Description
31:8	RSVD	R	-	Reserved
7	SSRIS	R	0	SS_N Rising Edge Detect Interrupt Status. This bit field is present only if the SPI is configured as a serial-slave dev ice. 0: ssi_ssr_intr interrupt is not active after masking 1: ssi_ssr_intr interrupt is active after masking
6	TXUIS	R	0	Transmit FIFO Under Flow Interrupt Status. This bit field is present only if the SPI is configured as a serial-slave dev ice. 0: ssi_txu_intr interrupt is not active after masking 1: ssi_txu_intr interrupt is active after masking
5	MSTIS_FAEIS	R	0	When SPI is configured as serial-master, this bit field is present as Multi-Master Contention Interrupt Status. 0: ssi_mst_intr interrupt is not active after masking 1: ssi_mst_intr interrupt is active after masking When SPI is configured as serial-slave, this bit field is p resent as Frame Alignment Interrupt Status. 0: ssi_fae_intr interrupt not active after masking 1: ssi_fae_intr interrupt is active after masking
4	RXFIS	R	0	Receive FIFO Full Interrupt Status. 0: ssi_rxf_intr interrupt is not active after masking 1: ssi_rxf_intr interrupt is full after masking
3	RXOIS	R	0	Receive FIFO Overflow Interrupt Status. 0: ssi_rxo_intr interrupt is not active after masking 1: ssi_rxo_intr interrupt is active after masking
2	RXUIS	R	0	Receive FIFO Underflow Interrupt Status. 0: ssi_rxu_intr interrupt is not active after masking 1: ssi_rxu_intr interrupt is active after masking
1	TXOIS	R	0	Transmit FIFO Overflow Interrupt Status. 0: ssi_txo_intr interrupt is not active after masking 1: ssi_txo_intr interrupt is active after masking
0	TXEIS	R	0	Transmit FIFO Empty Interrupt Status. 0: ssi_txe_intr interrupt is not active after masking 1: ssi_txe_intr interrupt is active after masking

REG_RISR

• Name : Raw Interrupt Status Register

• Size : 32

• Address offset : 034h

• Read/write access : R

This read-only register reports the status of the SPI interrupts prior to masking.

Bit	Symbol	Access	Reset	Description
31:8	RSVD	R	-	Reserved
7	SSRIR	R	0	SS_N Rising Edge Detect Raw Interrupt Status. This bit field is present only if the SPI is configured as a serial-slave device. 0: ssi_ssr_intr interrupt is not active prior to masking 1: ssi_ssr_intr interrupt is active prior to masking
6	TXUIR	R	0	Transmit FIFO Under Flow Raw Interrupt Status. This bit fiel d is present only if the SPI is configured as a serial-slav e device. 0: ssi_txu_intr interrupt is not active prior to masking 1: ssi_txu_intr interrupt is active prior to masking
5	MSTIR_FAEIR	R	0	When SPI is configured as serial-master, this bit field is present as Multi-Master Contention Raw Interrupt Status. 0: ssi_mst_intr interrupt is not active prior to masking 1: ssi_mst_intr interrupt is active prior to masking When SPI is configured as serial-slave, this bit field is p resent as Frame Alignment Error Raw Interrupt Status. 0: ssi_fae_intr interrupt not active prior to masking 1: ssi_fae_intr interrupt is active prior to masking
4	RXFIR	R	0	Receive FIFO Full Raw Interrupt Status. 0: ssi_rxf_intr interrupt is not active prior to masking 1: ssi_rxf_intr interrupt is active prior to masking
3	RXOIR	R	0	Receive FIFO Overflow Raw Interrupt Status. 0: ssi_rxo_intr interrupt is not active prior to masking 1: ssi_rxo_intr interrupt is active prior to masking
2	RXUIR	R	0	Receive FIFO Underflow Raw Interrupt Status. 0: ssi_rxu_intr interrupt is not active prior to masking 1: ssi_rxu_intr interrupt is active prior to masking
1	TXOIR	R	0	Transmit FIFO Overflow Raw Interrupt Status. 0: ssi_txo_intr interrupt is not active prior to masking 1: ssi_txo_intr interrupt is active prior to masking
0	TXEIR	R	0	Transmit FIFO Empty Raw Interrupt Status. 0: ssi_txe_intr interrupt is not active prior to masking 1: ssi_txe_intr interrupt is active prior to masking

REG_TXOICR

• Name : Transmit FIFO Overflow Interrupt Clear Register

• Size : 32

• Address offset : 038h

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	TXOICR	R	0	Clear Transmit FIFO Overflow Interrupt. This register reflec ts the status of the interrupt. A read from this register cl ears the ssi_txo_intr interrupt; writing has no effect.

REG_RXOICR

• Name : Receive FIFO Overflow Interrupt Clear Register

• Size : 32

• Address offset : 03Ch

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	RXOICR	R	0	Clear Receive FIFO Overflow Interrupt. This register reflect s the status of the interrupt. A read from this register cle ars the ssi_rxo_intr interrupt; writing has no effect.

REG_RXUICR

• Name : Receive FIFO Underflow Interrupt Clear Register

• Size : 32

• Address offset : 040h

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	RXUICR	R	0	Clear Receive FIFO Underflow Interrupt. This register reflec ts the status of the interrupt. A read from this register cl ears the ssi_rxu_intr interrupt; writing has no effect.

REG_MSTICR_FAEICR

• Name : Multi-Master & Frame Alignment Error Interrupt Clear Register

• Size : 32

• Address offset : 044h

• Read/write access : R

Serial-master : MSTICR is not used because ss_in_n is tie 1 for Motorola-SPI, ssi_mst_intr is not

used.

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	MSTICR_FAEICR	R	0	Multi-Master Interrupt Clear Register/Frame Alignment Error Interrupt Clear Register. When SPI is configured as serial-master, this bit field is used to Clear Multi-Master Contention Interrupt. A read fro m this register clears the ssi_mst_intr interrupt; writing h as no effect. When SPI is configured as serial-slave, this bit field is u sed to Clear Frame Alignment Interrupt. A read from this reg ister clears the ssi_fae_intr interrupt; writing has no effe ct.

REG_ICR

• Name : Interrupt Clear Register

• Size : 32

• Address offset : 048h

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	ICR	R	0	Clear Interrupt. This register is set if any of the interrup ts below are active. A read clears the ssi_txo_intr, ssi_rxu _intr, ssi_rxo_intr, and the ssi_mst_intr/ssi_fae_intr inter rupts. Writing to this register has no effect.

REG_DMACR

• Name : DMA Control Register

• Size : 32

• Address offset : 04Ch

• Read/write access : R/W

This register is only valid when SPI is configured with a set of DMA Controller interface signals.

Bit	Symbol	Access	Reset	Description
31:2	RSVD	R	-	Reserved
1	TDMAE	R/W	0	Transmit DMA Enable. This bit enables/disables the transmit FIFO DMA channel. 0: Transmit DMA disabled 1: Transmit DMA enabled
0	RDMAE	R/W	0	Receive DMA Enable. This bit enables/disables the receive FI FO DMA channel 0: Receive DMA disabled 1: Receive DMA enabled

REG_DMATDLR

• Name : DMA Transmit Data Level

• Size : 32

• Address offset : 050h

• Read/write access : R/W

This register is only valid when the SPI is configured with a set of DMA interface signals.

Bit	Symbol	Access	Reset	Description
31:6	RSVD	R	-	Reserved
5:0	DMATDL	R/W	0x0	Transmit Data Level. This bit field controls the level at wh ich a DMA request is made by the transmit logic. It is equal to the watermark level; that is, the dma_tx_req signal is ge nerated when the number of valid data entries in the transmi t FIFO is equal to or below this field value, and TDMAE = 1. For DMATDL decode, refer to the following description: 000000: dma_tx_req is asserted when 0 data entry is presen t in transmit FIFO. 000001: dma_tx_req is asserted when 1 data entry is presen t in transmit FIFO. 000010: dma_tx_req is asserted when 2 data entries are pre sent in transmit FIFO. 000011: dma_tx_req is asserted when 3 data entries are pre sent in transmit FIFO. ... 111100: dma_tx_req is asserted when 60 data entries are pr esent in transmit FIFO. 111101: dma_tx_req is asserted when 61 data entries are pr esent in transmit FIFO. 111110: dma_tx_req is asserted when 62 data entries are pr esent in transmit FIFO. 111111: dma_tx_req is asserted when 63 data entries are pr esent in transmit FIFO.

REG_DMARDLR

• Name : DMA Receive Data Level

• Size : 32

• Address offset : 054h

• Read/write access : R/W

This register is only valid when SPI is configured with a set of DMA interface signals.

Bit	Symbol	Access	Reset	Description
31:6	RSVD	R	-	Reserved
5:0	DMARDL	R/W	0x0	Receive Data Level. This bit field controls the level at whi ch a DMA request is made by the receive logic. The watermark level = DMARDL+1; that is, dma_rx_req is generated when the number of valid data entries in the receive FIFO is equal to or above this field value + 1, and RDMAE=1. For DMARDL decod e, refer to the following description: 000000: dma_rx_req is asserted when 1 or more data entries are present in transmit FIFO. 000001: dma_rx_req is asserted when 2 or more data entries are present in transmit FIFO. 000010: dma_rx_req is asserted when 3 or more data entries are present in transmit FIFO. 000011: dma_rx_req is asserted when 4 or more data entries are present in transmit FIFO. ... 111100: dma_rx_req is asserted when 61 or more data entrie s are present in transmit FIFO. 111101: dma_rx_req is asserted when 62 or more data entrie s are present in transmit FIFO. 111110: dma_rx_req is asserted when 63 or more data entrie s are present in transmit FIFO. 111111: dma_rx_req is asserted when 64 data entries are pr esent in transmit FIFO.

REG_TXUICR

• Name : Transmit FIFO Underflow Interrupt Clear Register

• Size : 32

• Address offset : 058h

• Read/write access : R

This register is present only if SPI is configured as serial-slave.

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	TXUICR	R	0	When SPI is configured as serial-slave, this register is us ed to Clear Transmit FIFO Underflow Interrupt. This register reflects the status of the interrupt. A read from this regis ter clears the ssi_txu_intr interrupt; writing has no effect .

REG_SSRICR

• Name : SS_N Rising Edge Detect Interrupt Clear Register

• Size : 32

• Address offset : 05Ch

• Read/write access : R

This register is present only if SPI is configured as serial-slave.

Bit	Symbol	Access	Reset	Description
31:1	RSVD	R	-	Reserved
0	SSRICR	R	0	When SPI is configured as serial-slave, this register is us ed to Clear SS_N Rinsing Edge Detect Interrupt. This registe r reflects the status of the interrupt. A read from this reg ister clears the ssi_ssr_intr interrupt; writing has no effe ct.

REG_DRx

• Name : Data Register x

• Size : 32

• Address offset : 060h + 04h * x (x=0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35)

• Read/write access : R/W

The SPI data register is a 16-bit read/write buffer for the transmit/receive FIFOs. When the regist

er is read, data in the receive FIFO buffer is accessed. When it is written to, data are moved into

the transmit FIFO buffer; a write can occur only when SSI_EN = 1. FIFOs are reset when SSI_EN = 0.

Note1: If the Data Register (DR) is accessed from an AHB master (such as a DMA controller or a proce

ssor), the AHB transfer type may be a burst. During AHB burst transfers, the address increments afte

r each beat of the burst. To facilitate an AHB burst, read, or write operation to the transmit or re

ceive FIFO, the Date Register occupies thirty-six 32-bit address locations of memory map. Each of

the 16-bit address locations are aliased to the DR; single accesses to the DR may use any of the 16

-bit address locations.

Note2: The DR register in the SPI occupies thirty-six 32-bit address locations of the memory map t

o facilitate AHB burst transfers. Writing to any of these address locations has the same effect as p

ushing the data from the pwdata bus into the transmit FIFO. Reading from any of these locations has

the same effect as popping data from the receive FIFO onto the prdata bus. The FIFO buffers on the S

PI are not addressable.

Bit	Symbol	Access	Reset	Description
31:16	RSVD	R	-	Reserved
15:0	DRx	R/W	0x0	Data Register. When writing to this register, you must right -justify the data. Read data are automatically right-justi fied. Read: Receive FIFO buffer Write: Transmit FIFO buffer

REG_RX_SAMPLE_DLY

• Name : rxd Sample Delay Register

• Size : 32

• Address offset : 0F0h

• Read/write access : R/W

This register is valid only when the SPI is configured as serial-master.

This register controls the number of ssi_clk cycles that are delayed—from the default sample time—be

fore the actual sample of the rxd input signal occurs. It is impossible to write to this register wh

en the SPI is enabled; the SPI is enabled and disabled by writing to the SSIENR register.

Note

If this register is programmed with a value that exceeds the depth of the internal shift register

s (SSI_RX_DLY_SR_DEPTH), a zero (0) delay will be applied to the rxd sample.

Bit	Symbol	Access	Reset	Description
31:8	RSVD	R	-	Reserved
7:0	RSD	R/W	0x0	Receive Data (rxd) Sample Delay. This register is used to de lay the sample of the rxd input signal. Each value represent s a single ssi_clk delay on the sample of the rxd signal.

REG_RSVD_0

• Name : Reserved location for future use

• Size : 32

• Address offset : 0F4h

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:0	RSVD	R	-	Reserved

REG_RSVD_1

• Name : Reserved location for future use

• Size : 32

• Address offset : 0F8h

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:0	RSVD	R	-	Reserved

REG_RSVD_2

• Name : Reserved location for future use

• Size : 32

• Address offset : 0FCh

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:0	RSVD	R	-	Reserved

REG_SPI_DUMMY

• Name : SPI Dummy Register

• Size : 32

• Address offset : 100h

• Read/write access : R

Bit	Symbol	Access	Reset	Description
31:16	RSVD	R	-	Reserved
15:0	DUMMY	R	0x0	Rsvd for hw
