The Ameba VS Code Extension provides a modern, integrated development environment for the Realtek Ameba SoC series. By centering on three core pillars—Automation, Visualization, and Remote Connectivity—it simplifies traditional embedded workflows. The extension seamlessly integrates compilation, flashing, monitoring, and debugging into the VS Code interface, supporting both local and remote development.
The extension is built on the open-source Cline project, retaining its advanced code-assist capabilities while adding specialized modules for Ameba chips. These features are delivered through a graphical interface, eliminating the need to switch between fragmented tools or memorize complex command-line arguments.
Automation: One-Click Environment Setup
For developers new to embedded systems, setting up a development environment can be a daunting and time-consuming task. The Ameba extension fully automates this process.
After installation, the extension automatically verifies the integrity of the SDK, pre-compiled toolchains, and Python virtual environments. If any components are missing, it provides dual mirror sources (GitHub and Aliyun) for a seamless, one-click download.
From downloading and extracting to path configuration and virtual environment creation, the entire process requires zero manual intervention. Developers can be ready to code in minutes, achieving a true "out-of-the-box" experience.
Visualization: Making System State Transparent
Hardware debugging often feels like working inside a black box. Traditional command-line workflows offer limited visibility into system state. The Ameba extension goes beyond providing a clean UI—it transforms runtime system status into structured, visual dashboards.
Workflow Visualization

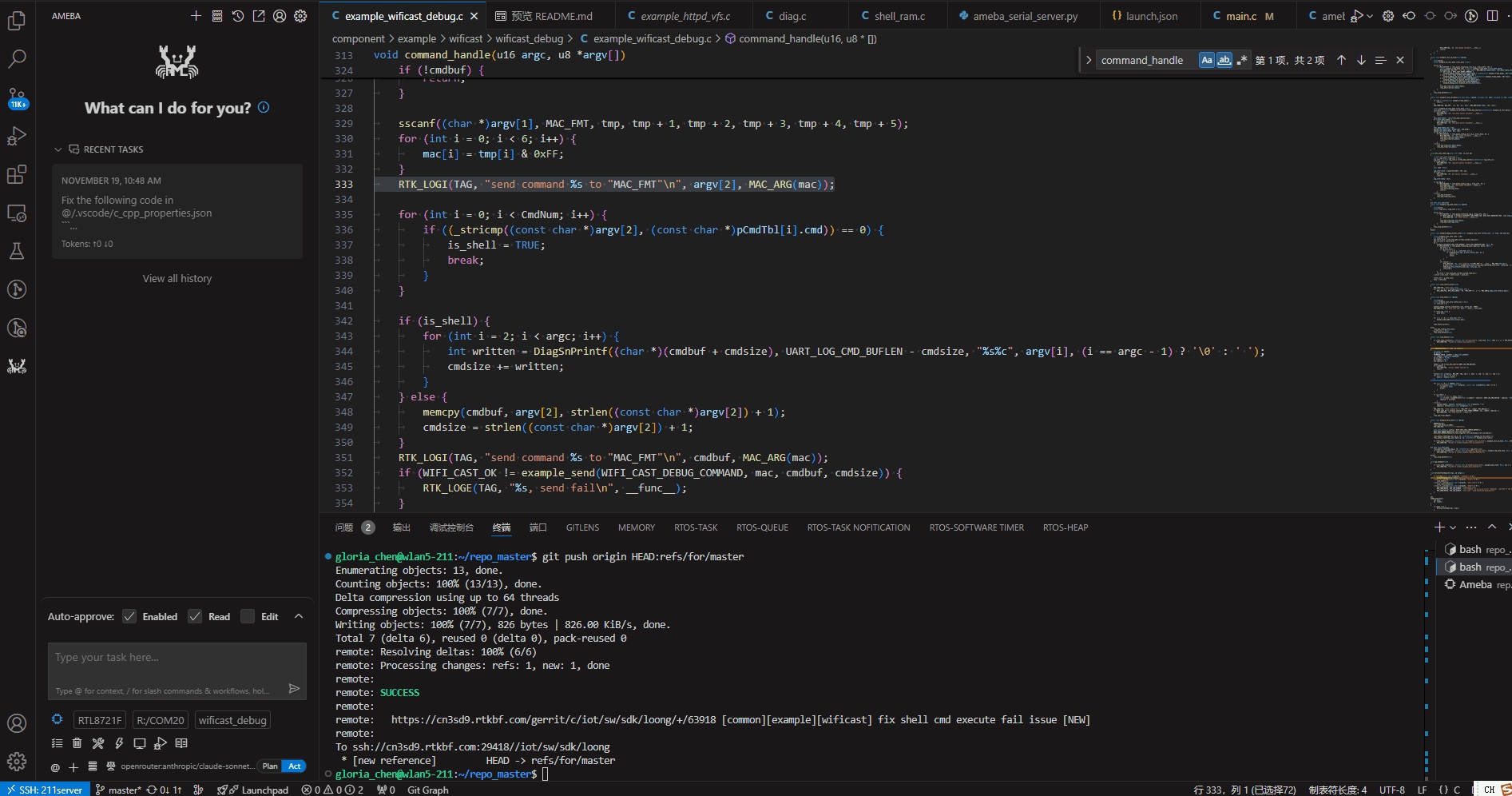

Core operations such as Menuconfig, Build, Flash, and Monitor are integrated into the sidebar as quick-access buttons, allowing developers to manage the entire lifecycle from a single window.
Debug State Visualization
For complex system architectures, the extension provides structured visual monitoring tools:
- RTOS-Aware View: Developers can view task statuses, stack usage, heap memory percentages, and queue loads through structured charts. This makes identifying crashes, stack overflows, and memory leaks straightforward.
- Peripheral Register View: Based on SVD files, the extension displays current register values along with their semantic definitions. Developers can verify peripheral configurations directly—without manually referencing the datasheet.
- Live Watch: Global variables can be observed in real time while the program runs at full speed. The CPU does not need to pause, making it ideal for monitoring registers and runtime variables dynamically.
To address the challenges of multi-core architectures, the extension also supports Synchronized Multi-Core Debugging. With "All Stop" and "Run Sync" modes, hitting a breakpoint on any single core will suspend all cores simultaneously. This ensures global consistency across the debug session and prevents data corruption in shared memory caused by desynchronized cores.
Remote Connectivity: Bridging Remote Build and Local Debug
In enterprise environments, source code is often hosted on secure remote Linux servers to protect intellectual property, while hardware development boards remain physically connected to local machines. Traditionally, developers compile firmware on the server, manually download it, and then flash it locally—often duplicating environment configurations.
The Ameba extension solves this topological split. By combining VS Code Remote-SSH with a locally deployed AmebaRemoteService, developers can trigger a build on a remote server and flash the resulting firmware directly to the board on their desk.
This architecture satisfies enterprise security requirements while preserving efficient hardware debugging workflows, significantly simplifying remote build and local deployment processes.
A Unified Toolchain
The Ameba VS Code Extension consolidates fragmented development tools into a single, high-performance platform. Through its "Automated, Visual, and Remote" capabilities, it provides a robust infrastructure that empowers both individual developers and enterprise teams to innovate faster.
