BMI270 Low Power

Materials

• AMB82-mini x 1

• SparkFun 6oF IMU Breakout - BMI270 x 1

Example

Introduction

This example shows how to configure interrupt pins to take measurement.

Procedure

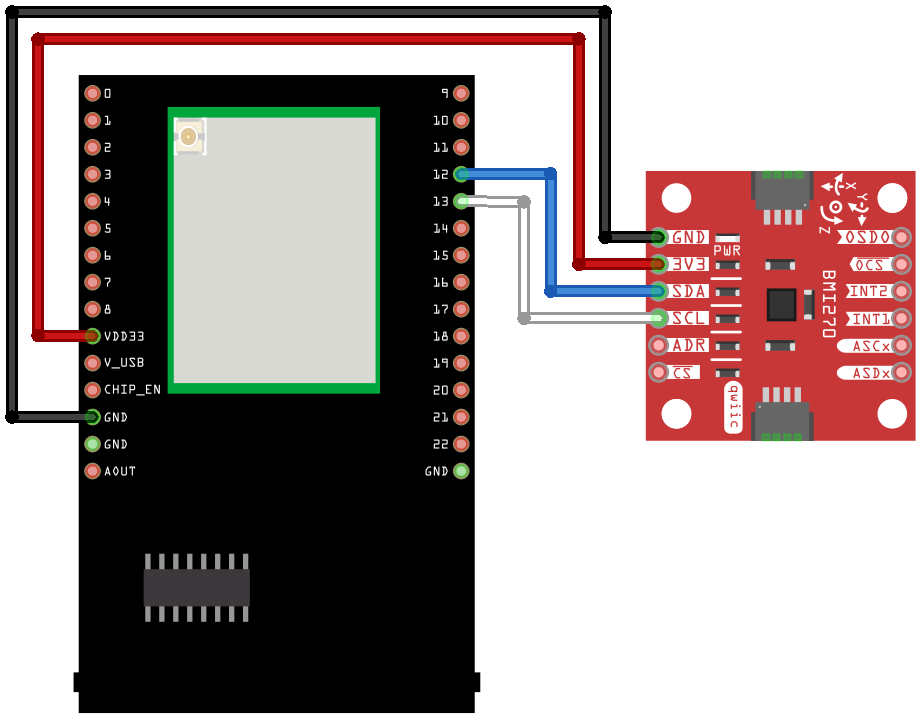

Connect the AMB82-mini to I2C_SDA and I2C_SCL of the sensor as shown in the diagram below.

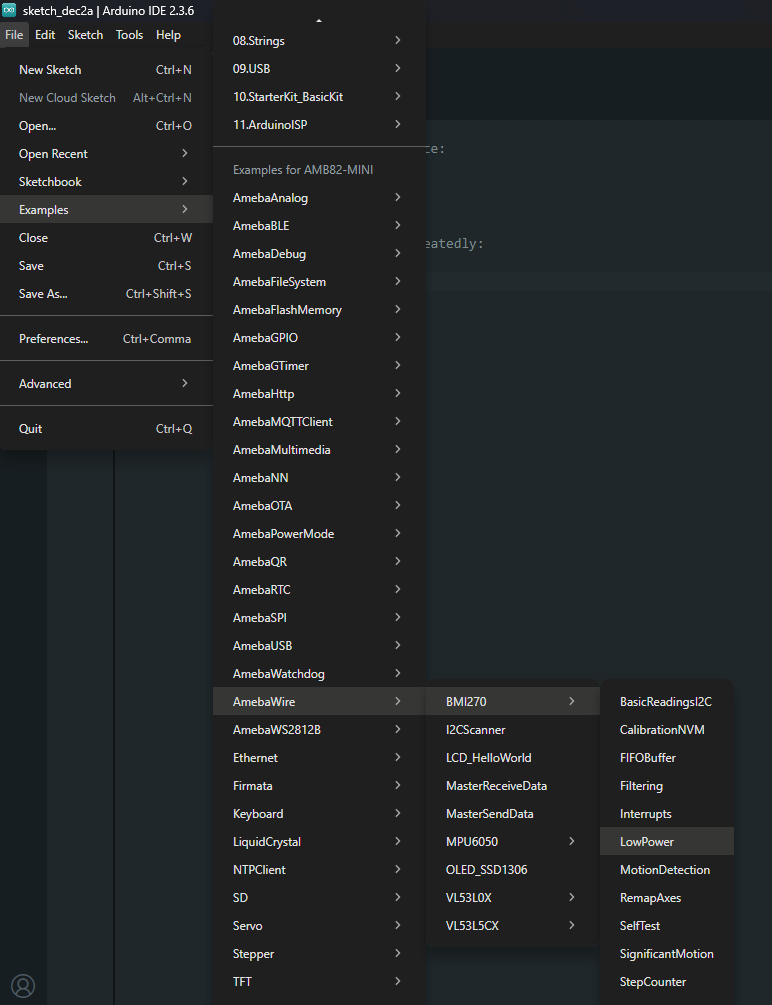

Open the example in "File" -> "Examples" -> "AmebaWire" -> "BMI270" -> "LowPower".

Compile and run the example.

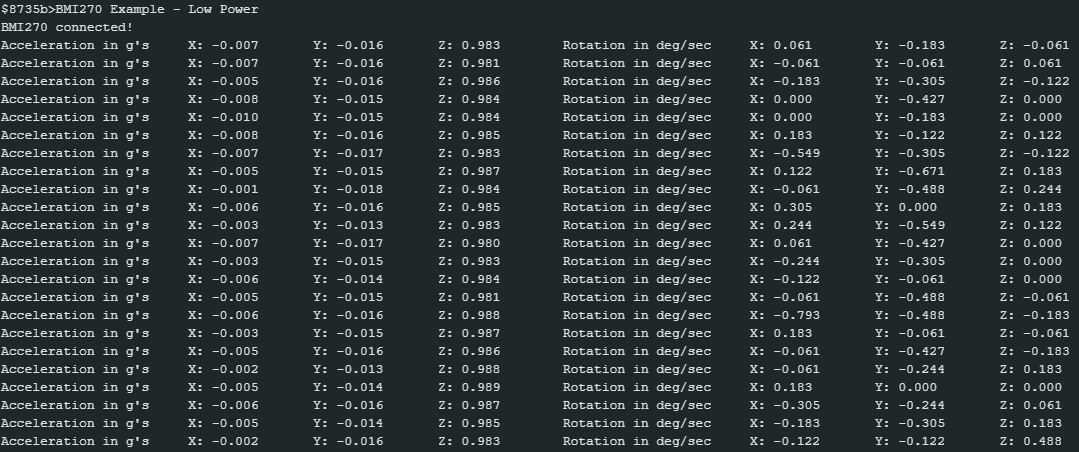

The measurements from the sensor will be printed out with low power consumption.
